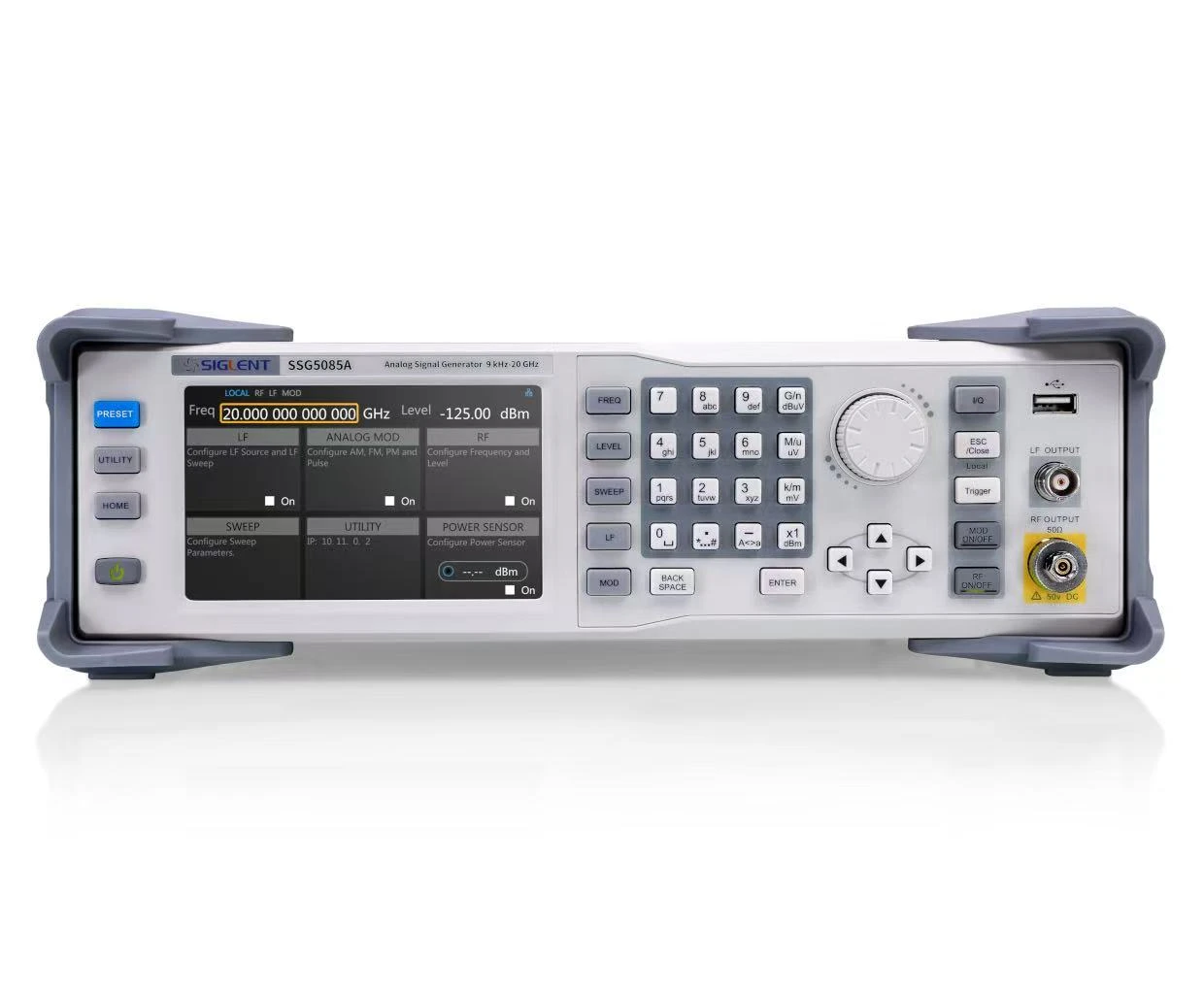

Microwave Signal Generator
Brand: Dingyang
Model: SSG5000A Series
Model: SSG5000A Series
The SSG5000A series specializes in continuous wave (CW) mode, with a frequency range extending from 9 kHz to 20 GHz, catering to various precision testing scenarios. It boasts a frequency resolution as high as 0.001 Hz, excellent phase noise performance, and a maximum output power of +23 dBm. With its high precision and stability, it has become a reliable partner in scientific research, education, and industrial applications.
Products
The SSG5000A microwave signal generator features an output frequency range of 9 kHz~20 GHz, delivering outstanding signal stability and precision, making it suitable for R&D, production, and various application scenarios. The SSG5000A is equipped with pulse generator functionality, supporting a minimum pulse width of 20 ns, ideal for radar system testing and other related fields. Optional pulse modulation is available with a typical spurious suppression of >80 dBc. The optional pulse sequence generator can simulate complex pulse scenarios, with a pulse count range of 1-2047.
Product Parameters
Maximum output frequency: 13.6 GHz/20 GHz
- Level setting range: -130 dBm ~ 20 dBm
- Amplitude accuracy: ≤0.7 dB (typical)
- Phase noise: < -120 dBc/Hz@1 GHz, offset 20 kHz (typical)
- Supports pulse modulation (optional), pulse sequence generator, and user-defined pulse sequences (optional)
5-inch capacitive touchscreen for intuitive operation
