Data Acquisition Logger

Brand: NI USRP

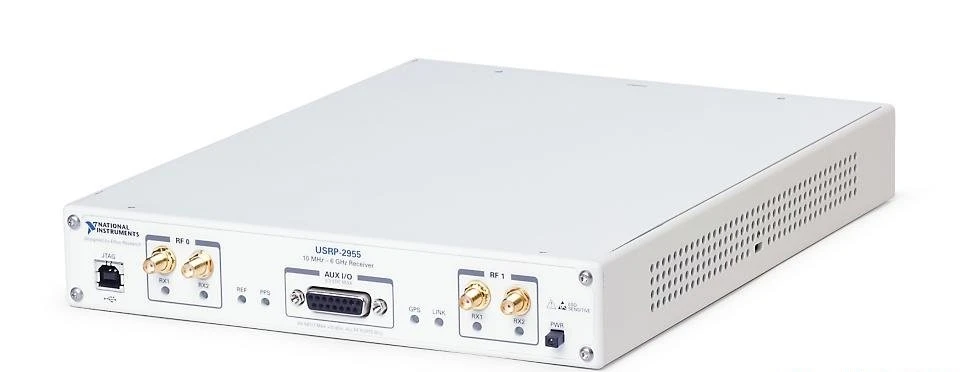

Model: US NI USRP-2955

The US NI USRP-2955 software-defined radio device is a reconfigurable RF platform that integrates host-based processing, FPGA, and RF front-end into a single unit. USRP software-defined radio devices offer options ranging from low-cost solutions with fixed FPGA functionality to high-end configurations with large open FPGAs and wide instantaneous bandwidths. These devices are suitable for multi-input multi-output (MIMO) applications, LTE/WiFi testbeds, signal intelligence, and radar systems.

telephone number

inbox

Products

The USRP-2955 provides an integrated hardware and software solution for rapid prototyping of high-performance wireless receiver systems. This solution is specifically designed for airborne signal acquisition and analysis. The device adopts a two-stage superheterodyne architecture, featuring four independent receiver channels and a shared local oscillator to enable phase-coherent operation. The Kintex-7 FPGA can be programmed using LabVIEW FPGA modules. Leveraging these features, the USRP-2955 delivers high RF and processing performance for applications such as spectrum monitoring, direction finding, signal intelligence, wideband recording, and radar prototyping. The USRP-2955 comes equipped with a GPS-disciplined 10 MHz oven-controlled crystal oscillator (OCXO) reference clock, enhancing frequency accuracy and synchronization capabilities.

Product Parameters

· Tunable center frequency from 10 MHz to 6 GHz, covering FM, GPS, GSM, radar, and ISM bands

· Cost-effective solution for education and research

· Achieves 80 MHz baseband I/Q bandwidth with 25 MS/s data read/write rates for host-based processing with NI LabVIEW

· Supported by NI technology with a warranty of 1 year or longer

· Compatible with Windows 7/Vista/XP

·Bus connector: MXIe, Ethernet

·RF frequency range: 10 MHz to 6 GHz

·GPSDO: Yes

·Number of output channels: 0

·RF transceiver instantaneous bandwidth: 80 MHz

·Number of input channels: 4
