  • Handheld Signal Analyzer

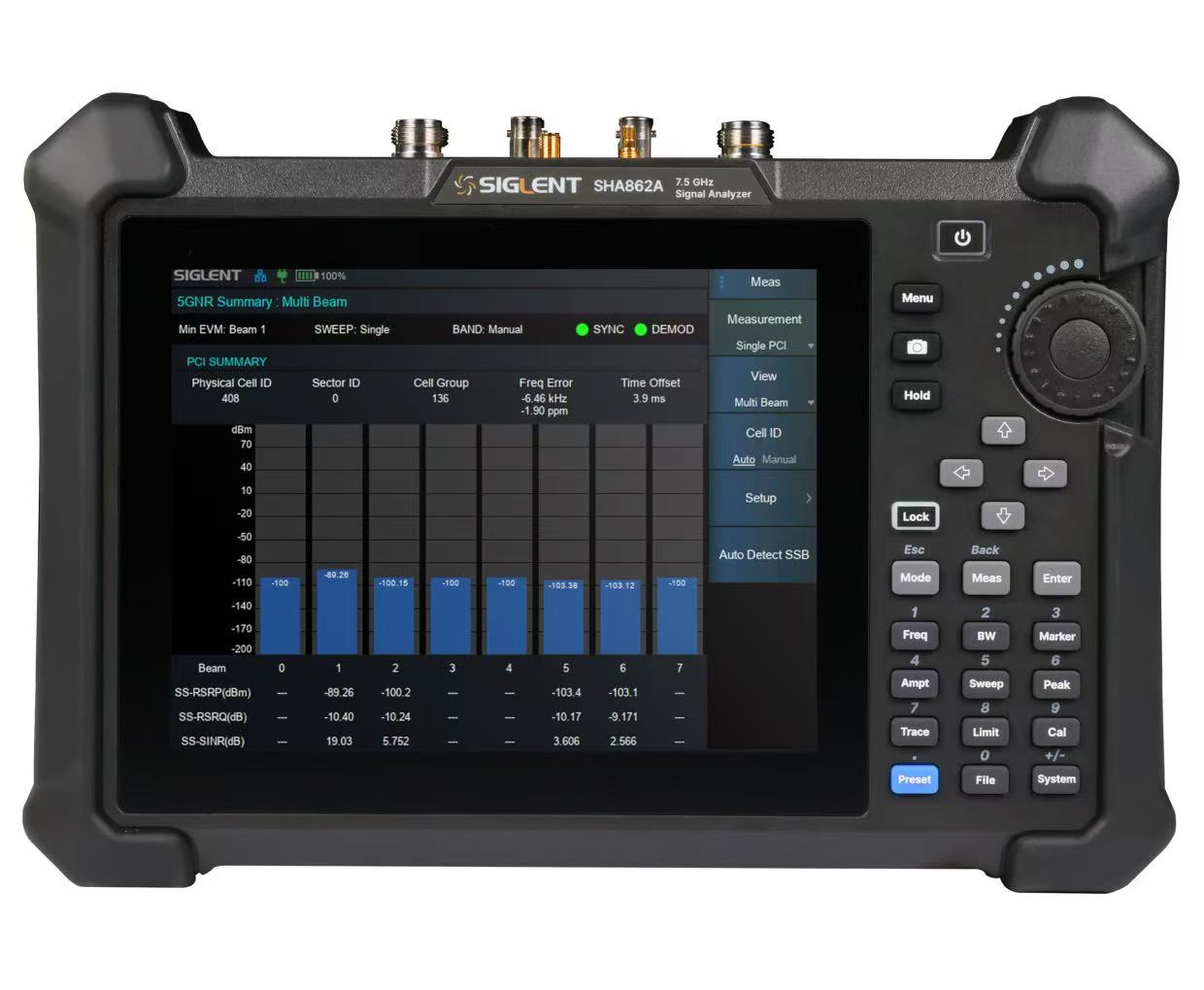

Handheld Signal Analyzer
Brand: Dingyang
Model: SHA860A Series
The SHA860A is a high-performance real-time spectrum analyzer with a frequency range covering 9 kHz to 26.5 GHz. Its real-time analysis function can capture transient signals, combining high sensitivity and low noise characteristics, making it the preferred tool for wireless communication, radar testing, and other fields.

Contact Us

telephone number
WhatsApp
inbox
Products
The SHA860A handheld signal analyzer integrates multiple advanced functions: supports real-time spectrum analysis (RTSA) for precise capture of transient signals; features 5G NR and LTE FDD/TDD OTA over-the-air testing capabilities; provides professional pulse parameter analysis; supports indoor/outdoor mapping with coverage heatmap generation; and includes IQ data acquisition for in-depth signal analysis. It is the ideal solution for field testing.
Product Parameters

  • Frequency range: 9 kHz – 26.5 GHz

  • Maximum real-time analysis bandwidth: 110 MHz
  • Supports 5G NR OTA measurement and analysis
  • Supports LTE FDD/TDD OTA measurement and analysis
  • Supports pulse measurement and analysis
  • Supports GPS positioning with online map display

  • Typical operation time: 2.5 hours, net weight: 3.2 kg



Model NumberFrequency RangeReal-time Analysis BandwidthPhase Noise (Typical Value)Displayed Average Noise Level (DANL)Vector Network Analysis RangeFrequency Resolution
SHA861A9 kHz - 3.6 GHz40 MHz, 110 MHz (Optional)<-104 dBc/Hz-165 dBm/Hz100 kHz - 3.6 GHz1 Hz
SHA862A9 kHz - 7.5 GHz40 MHz, 110 MHz (Optional)<-104 dBc/Hz-165 dBm/Hz100 kHz - 7.5 GHz1 Hz
SHA863A9 kHz - 14 GHz40 MHz, 110 MHz (Optional)<-104 dBc/Hz-165 dBm/Hz100 kHz - 14 GHz1 Hz
SHA864A9 kHz - 20 GHz40 MHz, 110 MHz (Optional)<-104 dBc/Hz-165 dBm/Hz100 kHz - 20 GHz1 Hz
SHA865A9 kHz – 26.5 GHz40 MHz, 110 MHz (Optional)<-104 dBc/Hz-165 dBm/Hz100 kHz – 26.5 GHz1 Hz
