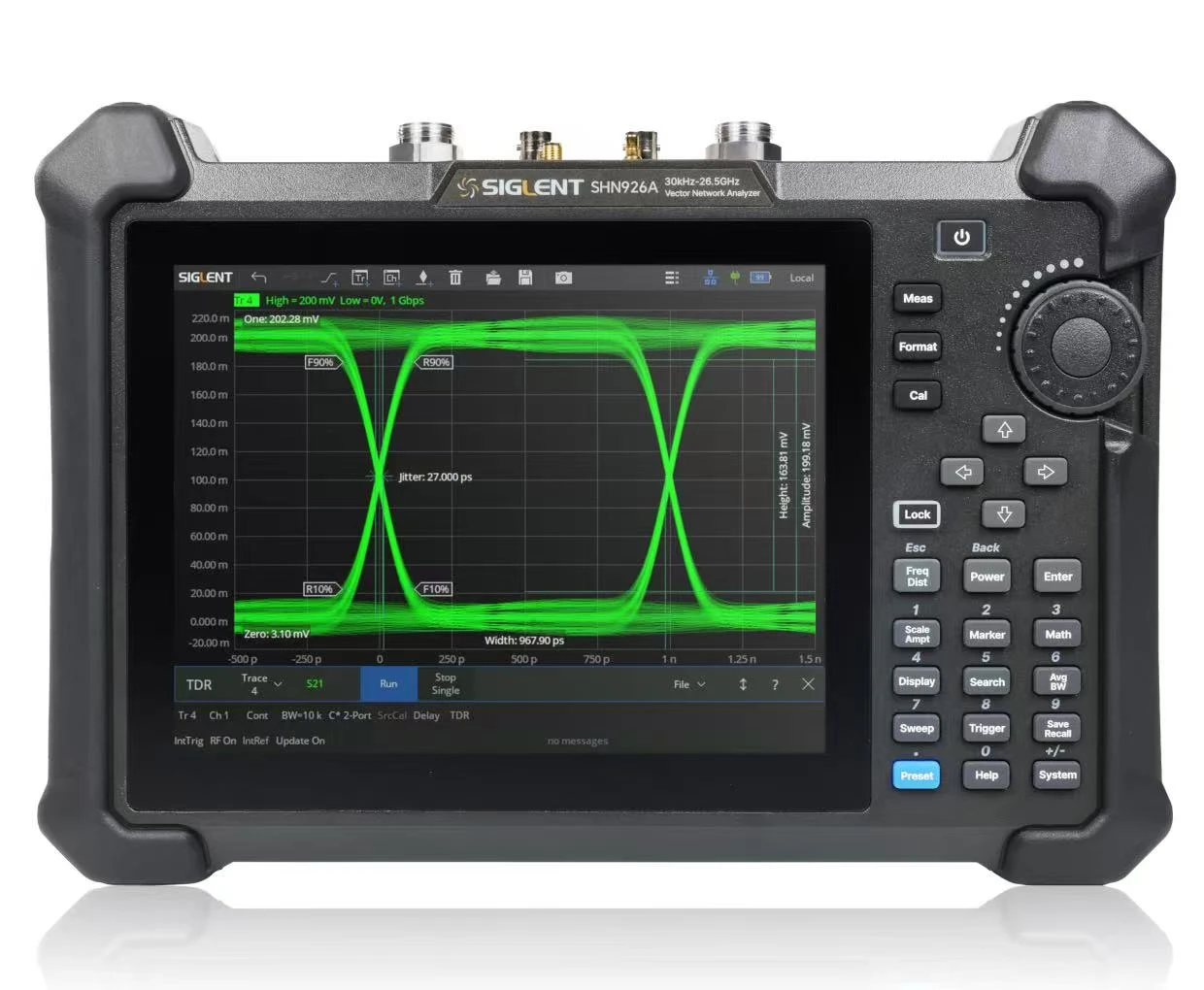

Model: SHN900A Series
The SHN900A Series Vector Network Analyzer is a high-precision testing instrument that combines excellent RF performance with portability. This series adopts an innovative compact design, maintaining laboratory-grade measurement accuracy while significantly reducing device size and weight, making it ideal for R&D labs, production lines, and field testing scenarios. Equipped with a high-resolution touchscreen, it supports multi-window and multi-trace display modes, enabling simultaneous visualization of multiple measurement data and test results for comprehensive analysis. The system offers flexible calibration options including full two-port calibration and response calibration to ensure measurement accuracy and reliability.
Vector network/spectrum analysis frequency range: 30 kHz~14/20/26.5 GHz
- Antenna and cable measurement frequency range: 30 kHz~14/20/26.5 GHz
- Dynamic range: 100 dB
- IF bandwidth range: 10 Hz~3 MHz
- Output power setting range: -45 dBm ~ +10 dBm
- High-capacity battery power supply, 4-hour standby, GPS positioning
- Supports full two-port S-parameter measurement, differential/balanced measurement
Supports CAT/DTF measurement, spectrum analysis, TDR time domain analysis
