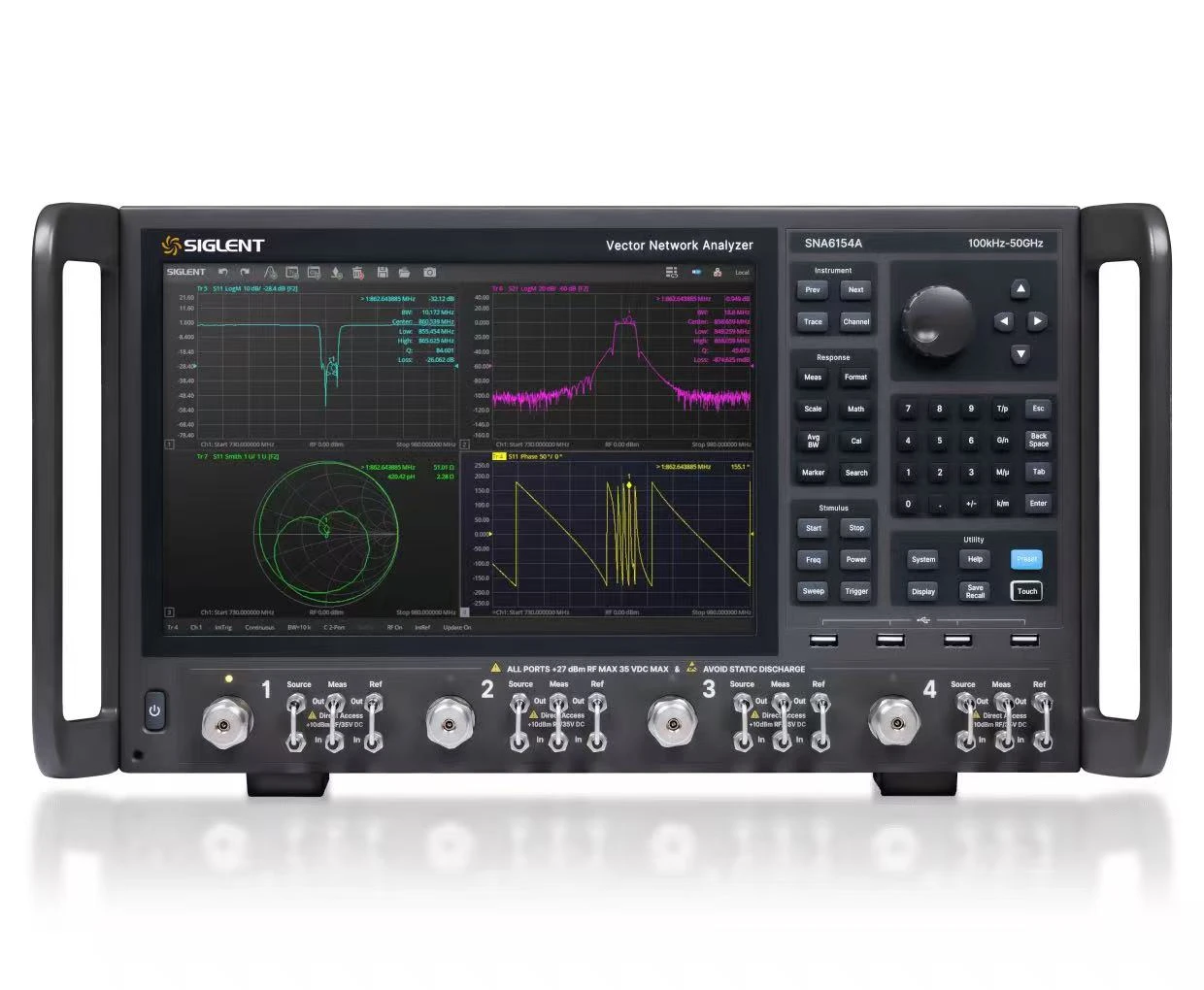

Vector Network Analyzer
Brand: Dingyang
Model:SNA6000A Series
Model:SNA6000A Series
The SNA6000A Series is Dingyang Technology's flagship vector network analyzer, featuring measurement frequencies up to 50 GHz and supporting comprehensive 4-port S-parameter measurements. Its powerful differential measurement and time-domain analysis capabilities make it stand out in high-frequency device testing. Supporting multiple calibration methods and ultimate testing functions, it ensures measurement accuracy and reliability.
Products
The SNA6000A Series Vector Network Analyzer is a high-performance multifunctional testing platform with comprehensive measurement capabilities ranging from baseband frequencies up to 110 GHz millimeter wave bands. This series integrates a multi-port switching matrix system, enabling efficient automated testing of complex multi-port devices; supports high-precision time-domain analysis and signal integrity measurements, ideal for validation and debugging of high-speed digital circuits and RF systems. The equipment can also precisely characterize material dielectric properties, widely applied in new material research and development. For chip testing, the SNA6000A Series supports single-connection multi-parameter measurements, significantly improving testing efficiency; it also features outstanding OTA (Over-the-Air) performance, making it an ideal test solution for 5G, millimeter wave communication, and antenna system R&D.
Product Parameters
Frequency range: 100 kHz~50 GHz
- Dynamic range: 135 dB
- IF bandwidth range: 1 Hz~10 MHz
- Output power setting range: -60 dBm ~ +20 dBm
- Supports 4-port S-parameter measurements, differential (balanced) measurements, time-domain analysis,scalar mixer measurementsetc.
Optional electronic calibration kits, switching matrices, mechanical switches
