  • Digital Oscilloscope

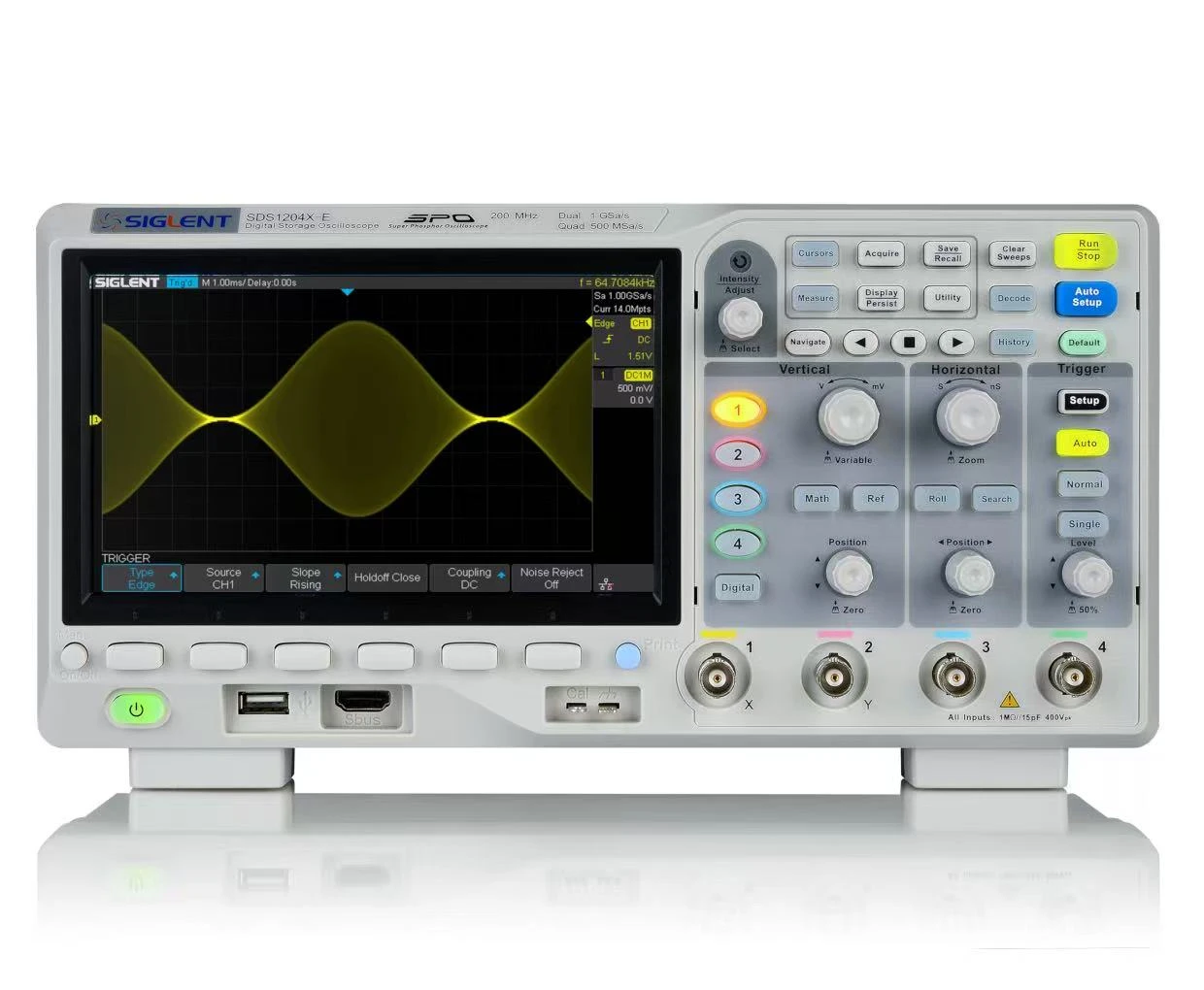

Digital Oscilloscope
Brand: SIGLENT
Model: SDS1000X-E Series
The SDS1000X-E Series is SIGLENT's premium product line for the cost-effective market segment. Offering bandwidth from 70 MHz to 200 MHz, 1 GSa/s sampling rate, and rich triggering options to ensure accurate and reliable test results. An ideal choice for beginners and budget-conscious users.

Contact Us

telephone number
WhatsApp
inbox
Products
The SDS1000X-E Series oscilloscopes feature deep memory and fast waveform refresh rate, bringing innovative data processing capabilities. This series comes standard with serial decoding functionality, supports power circuit response analysis and Bode plot (4-channel models), provides powerful debugging analysis capabilities, and allows remote control via web interface.
Product Parameters

  • 2/4 channels, 1 GSa/s sampling rate

  • 70 M/100 M/200 MHz bandwidth
  • 1 M-point FFT analysis
  • 14 M full sampling point measurement operations
  • Standard IIC/SPI/UART/CAN/LIN serial triggering and decoding

  • Optional MSO, 16 digital channels


Model NumberAnalog bandwidthNumber of channelsVertical resolutionMaximum real-time sample rateMaximum memory depthMaximum waveform capture rate
SDS1204X-E200 MHz48-bit1 GSa/s14 Mpts400,000 wfm/s
SDS1202X-E200 MHz2+EXT8-bit1 GSa/s14 Mpts400,000 wfm/s
SDS1104X-E100 MHz48-bit1 GSa/s14 Mpts400,000 wfm/s
SDS1102X-E100 MHz2+EXT8-bit1 GSa/s14 Mpts400,000 wfm/s
SDS1074X-E70 MHz48-bit1 GSa/s14 Mpts400,000 wfm/s
SDS1072X-E70 MHz2+EXT8-bit1 GSa/s14 Mpts400,000 wfm/s



Product Specification Download
