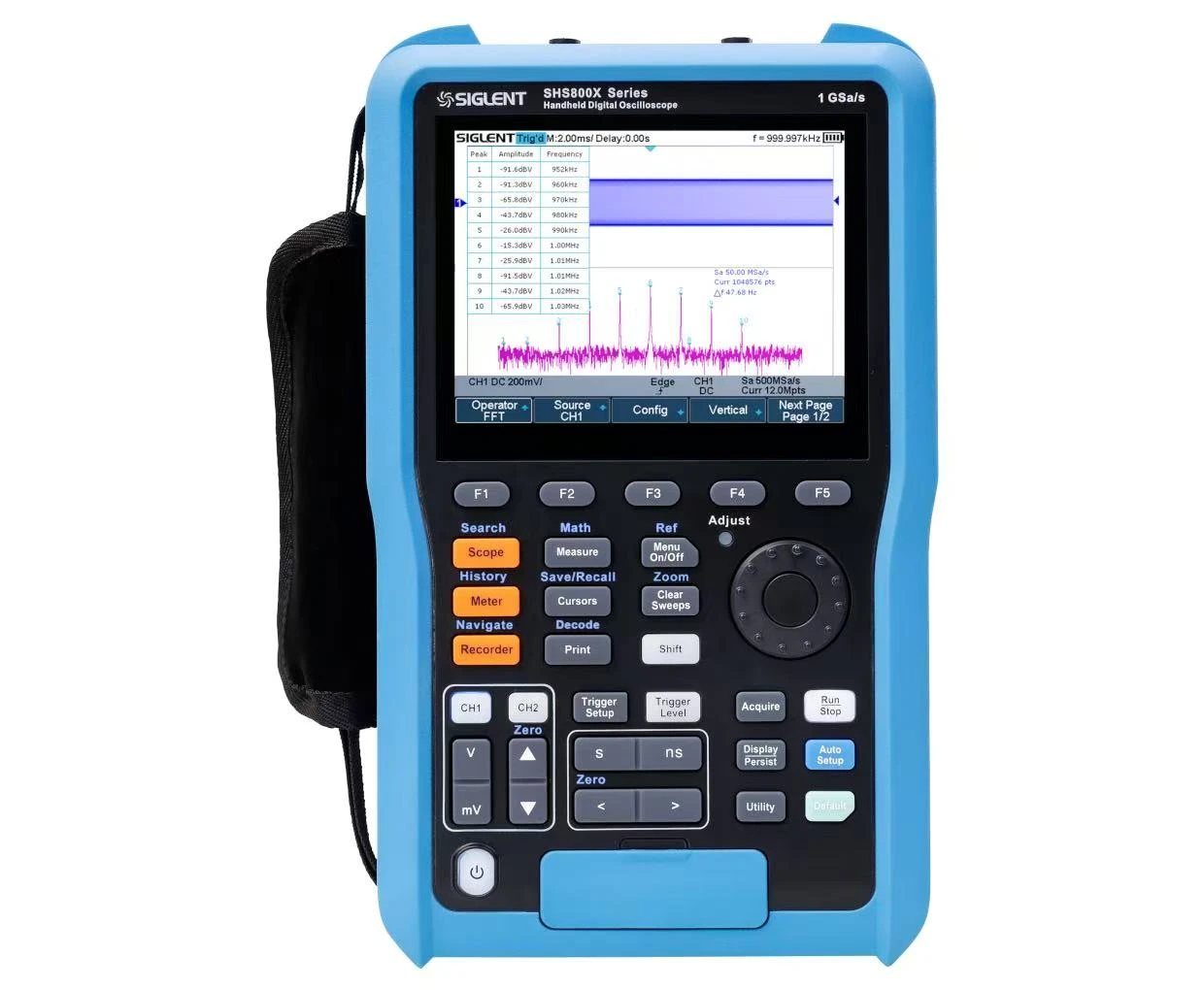

Handheld oscilloscope
Brand: Dingyang
Model:SHS800X Series
Model:SHS800X Series
The SHS800X series handheld oscilloscope has won widespread market recognition for its high cost-performance ratio and excellent performance. This series offers bandwidth options from 70 MHz to 200 MHz, suitable for various application scenarios. Its dual-channel design with 1 GSa/s sampling rate and 12 Mpts memory depth ensures signal integrity and accuracy.
Additionally, the SHS800X series integrates eight common multimeter functions including voltage, current, and resistance measurement, providing users with more convenient testing experience. The ultra-long battery life and compact body design make it an ideal portable choice for engineers.
Products
The SHS800X series handheld oscilloscope integrates oscilloscope, multimeter, recorder, spectrum and protocol analyzer into one unit, suitable for R&D, production, maintenance and other scenarios. The oscilloscope features SPO digital phosphor technology with a waveform refresh rate up to 400,000 frames/second, stable waveforms, and supports 5 embedded and automotive industry serial protocol decoders. The multimeter is based on hardware true RMS measurement, capable of measuring multiple parameters and plotting trend graphs; the recorder supports 22-hour long waveform recording and playback with a sampling rate up to 25 kSa/s.
Product Parameters
- Integrates oscilloscope, multimeter, waveform recorder, measurement recorder, protocol analyzer, and FFT spectrum analyzer
- Available with 70 MHz, 100 MHz, 200 MHz bandwidth, 12 Mpts memory depth, 1 GSa/s sampling rate
- SPO digital phosphor technology, waveform refresh rate 100,000 frames/second (up to 400,000 frames/second in Sequence mode)
- Lightweight at only 1.75 kg, comes with portable shoulder bag, easily accommodates multiple probes and accessories
- Hardware-based true RMS multimeter
- New lithium battery with 6900 mAh capacity, up to 5.5 hours battery life
Dustproof and waterproof rating reaches IP51 level
