  • Handheld oscilloscope

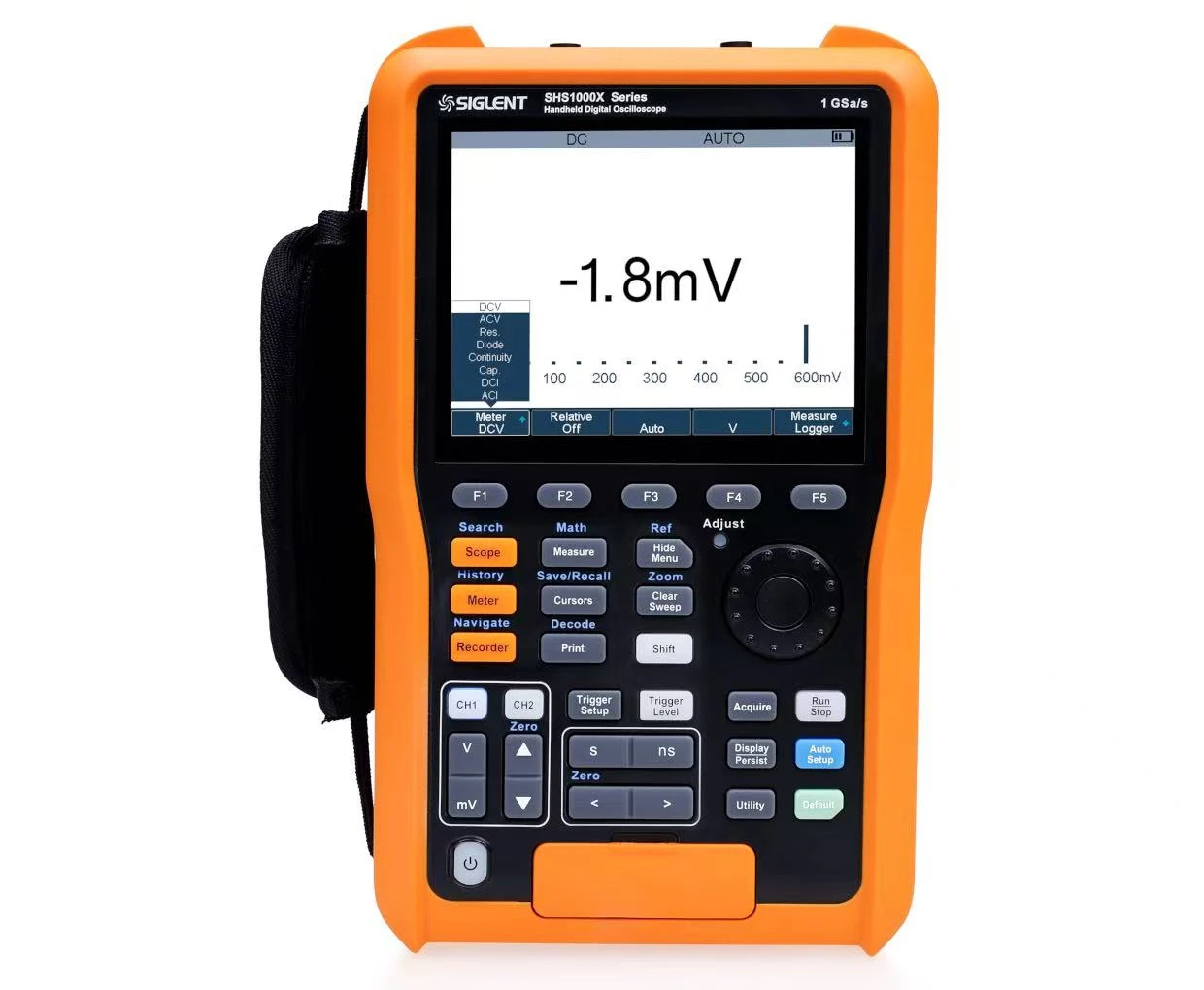

Handheld oscilloscope
Brand: Dingyang
Model: SHS1000X Series
The SHS1000X Series is a high-performance handheld oscilloscope meticulously developed by Dingyang Technology, offering bandwidth options from 70 MHz to 200 MHz to meet diverse measurement needs. Its unique dual-isolated channel design ensures safety and precision during measurements. With real-time sampling rate up to 1 GSa/s and 12 Mpts memory depth, it captures fast-changing signal details effectively. Combining built-in multimeter functionality and recording capabilities, the SHS1000X Series becomes an indispensable tool for engineers conducting field testing and analysis, enhancing both work efficiency and measurement accuracy.

Contact Us

telephone number
WhatsApp
inbox
Products
The SHS1000X Series is a fully isolated digital multimeter designed with CAT III measurement grade for safety and reliability. It supports multiple decoding functions and features IP51-rated dustproof and waterproof performance. Based on hardware-implemented true RMS measurement, it delivers accurate and stable readings.
Product Parameters

  • Isolation voltage rating: CAT II 1000 Vrms, CAT III 600 Vrms,

  • Combines oscilloscope, multimeter, waveform recorder, data logger, protocol analyzer, and FFT spectrum analyzer in one device

  • Available bandwidth options: 70 MHz, 100 MHz, 200 MHz; 12 Mpts memory depth; 1 GSa/s sampling rate

  • SPO digital phosphor technology with 100,000 wfm/s waveform refresh rate (up to 400,000 wfm/s in Sequence mode)

  • Lightweight at only 1.75 kg; comes with portable shoulder bag for easy transport of multiple probes and accessories

  • Hardware-based true RMS multimeter implementation

  • New lithium battery with 6900 mAh capacity provides up to 4 hours of continuous operation

  • Dustproof and waterproof protection meets IP51 standard


Model NumberAnalog bandwidthNumber of channelsVertical resolutionMaximum real-time sample rateMaximum memory depthMaximum waveform capture rate
SHS1202X200 MHz28-bit1 GSa/s12 Mpts400,000 wfm/s
SHS1102X100 MHz28-bit1 GSa/s12 Mpts400,000 wfm/s
SHS1072X70 MHz28-bit1 GSa/s12 Mpts400,000 wfm/s


Product Specification Download
