Oscilloscope
Brand: Dingyang

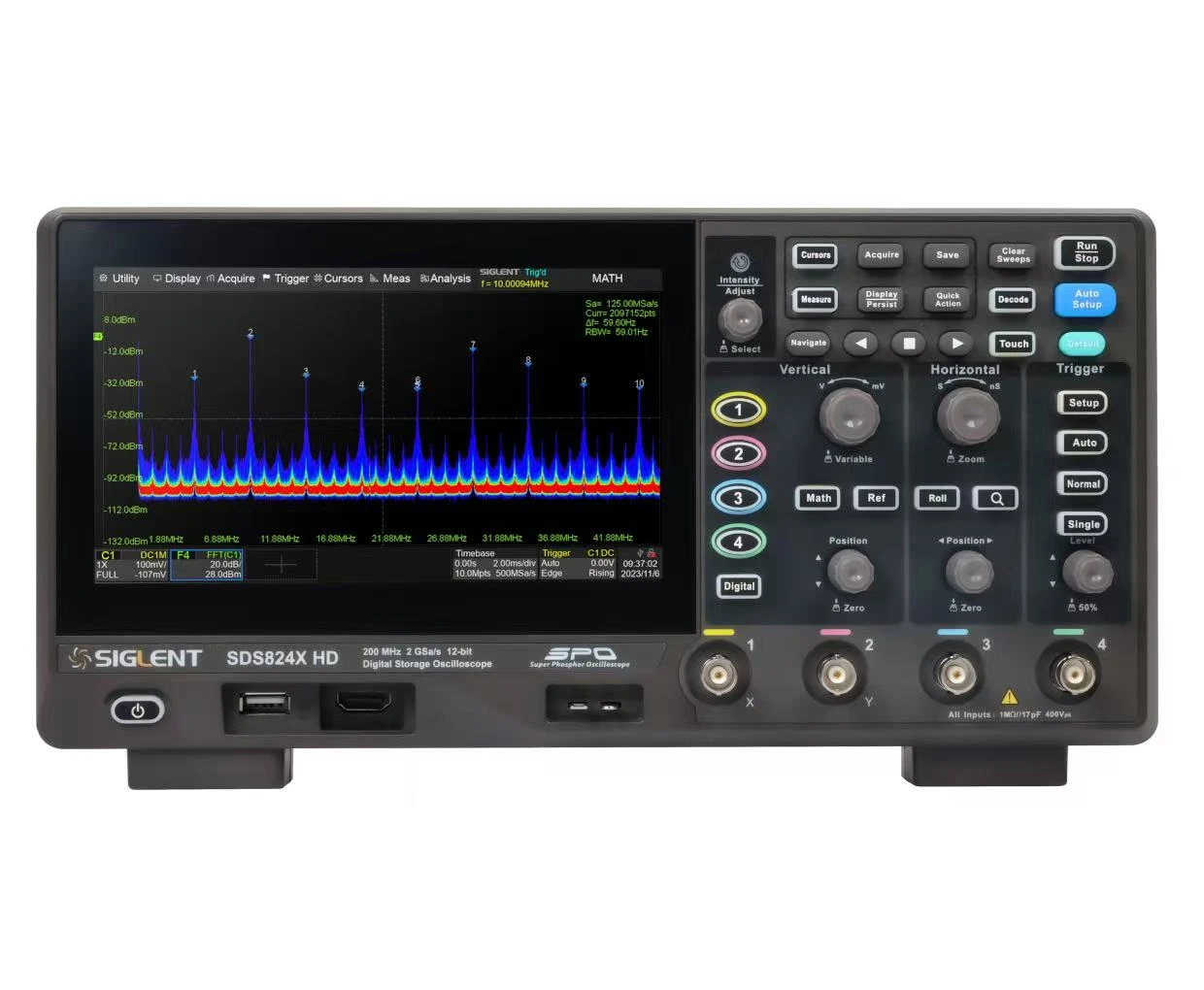

Model: SDS800X HD Series
Model: SDS800X HD Series
The SDS800X HD Series oscilloscopes are designed for high-performance testing applications, offering bandwidth options from 70 MHz to 200 MHz, suitable for testing and debugging various precision electronic devices. This series supports 2 to 4 analog channels with optional expansions to meet diverse testing needs. With a sampling rate of up to 2 GSa/s and a waveform capture rate of 500,000 wfm/s, it ensures rapid capture of transient signals. The 12-bit vertical resolution combined with 100 Mpts memory depth delivers clear, detailed waveform data, making it an indispensable tool for engineers in circuit design and fault diagnosis.
Products
The SDS800X HD Series digital oscilloscopes are equipped with 12-bit high-resolution ADCs, featuring deep memory storage for precise capture and analysis of complex signals. This series supports efficient power analysis and optimal circuit response testing, offering rich triggering, serial protocol decoding, and 16-channel digital logic analysis capabilities. Combined with powerful mathematical computation, it fully meets the requirements for embedded design, power development, and high-speed signal testing.
Product Parameters
- Vertical resolution: 12-bit
- Bandwidth: 70/100/200 MHz
- Memory depth: 50/100 Mpts
- Real-time sampling rate: 2 GSa/s
- Waveform capture rate: 500,000 frames/second (Sequence mode)
7-inch touchscreen, supports external mouse and keyboard
