Oscilloscope
Brand: Dingyang

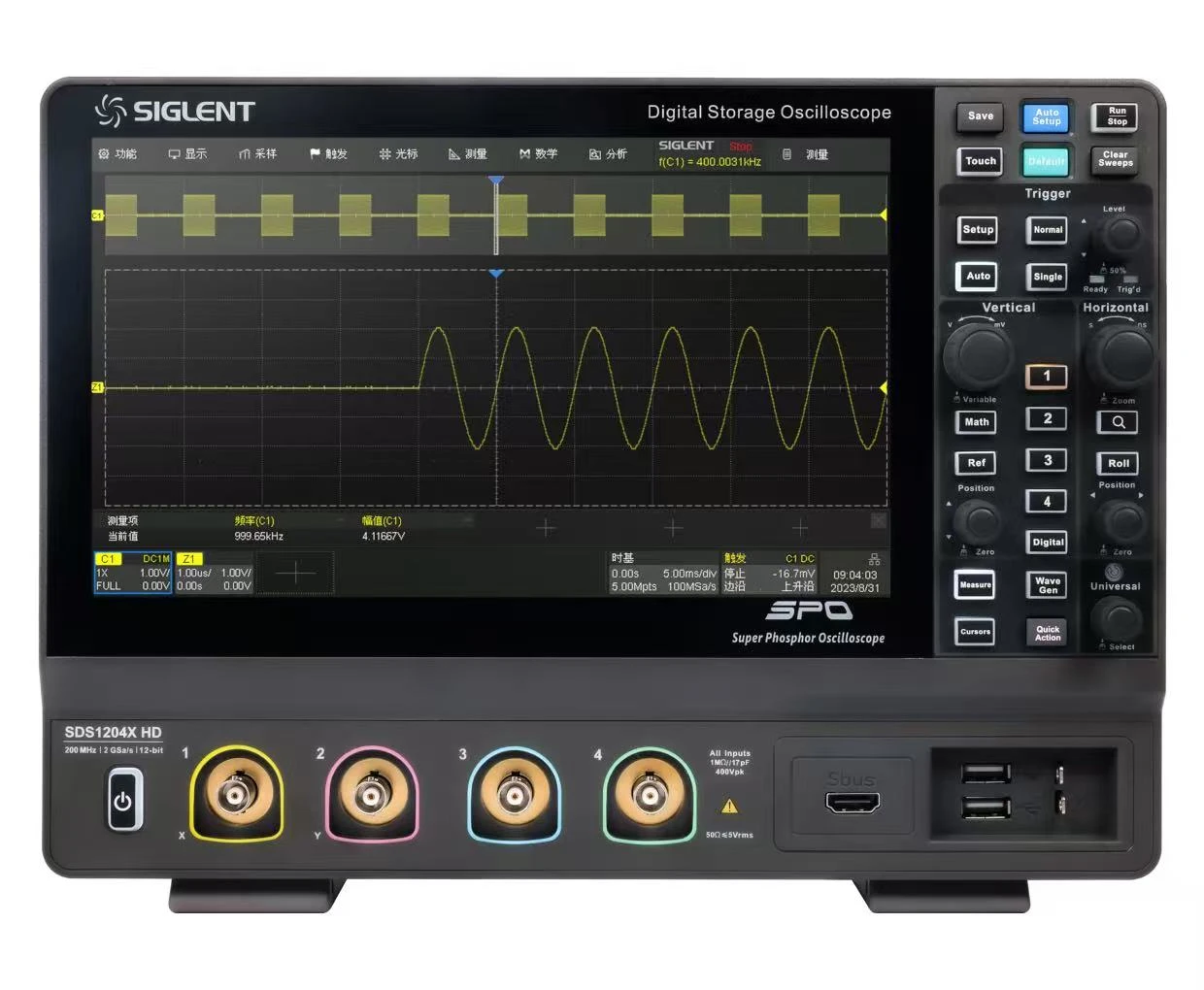

Model:SDS1000X HD Series
Model:SDS1000X HD Series
The SDS1000X HD Series oscilloscopes not only retain their education-friendly features but also show performance improvements. Bandwidth ranges from 70 MHz to 200 MHz to meet broader teaching and lab requirements. High-definition display in HD mode presents more refined waveforms for enhanced learning experience.
Products
The SDS1000X HD Series oscilloscopes feature 12-bit high-resolution sampling for precise waveform detail display. Support segmented acquisition and template testing to efficiently capture anomalies and verify product quality. Equipped with 4-channel parallel math operations and FFT analysis, achieving perfect integration of time and frequency domains. Offers rich triggering functions and power analysis capabilities to accurately locate events and assist in power design evaluation.
Product Parameters
- Analog bandwidth: 70MHz, 100MHz, 200 MHz
- Vertical resolution: 12-bit
- Real-time sampling rate: 2 GSa/s
- Memory depth: 100 Mpts/ch (single channel mode)
- Waveform capture rate: 500,000 frames/second (Sequence mode)
Low baseline noise: Below 70 μVrms at 200 MHz full bandwidth
