Oscilloscope
Brand: Dingyang

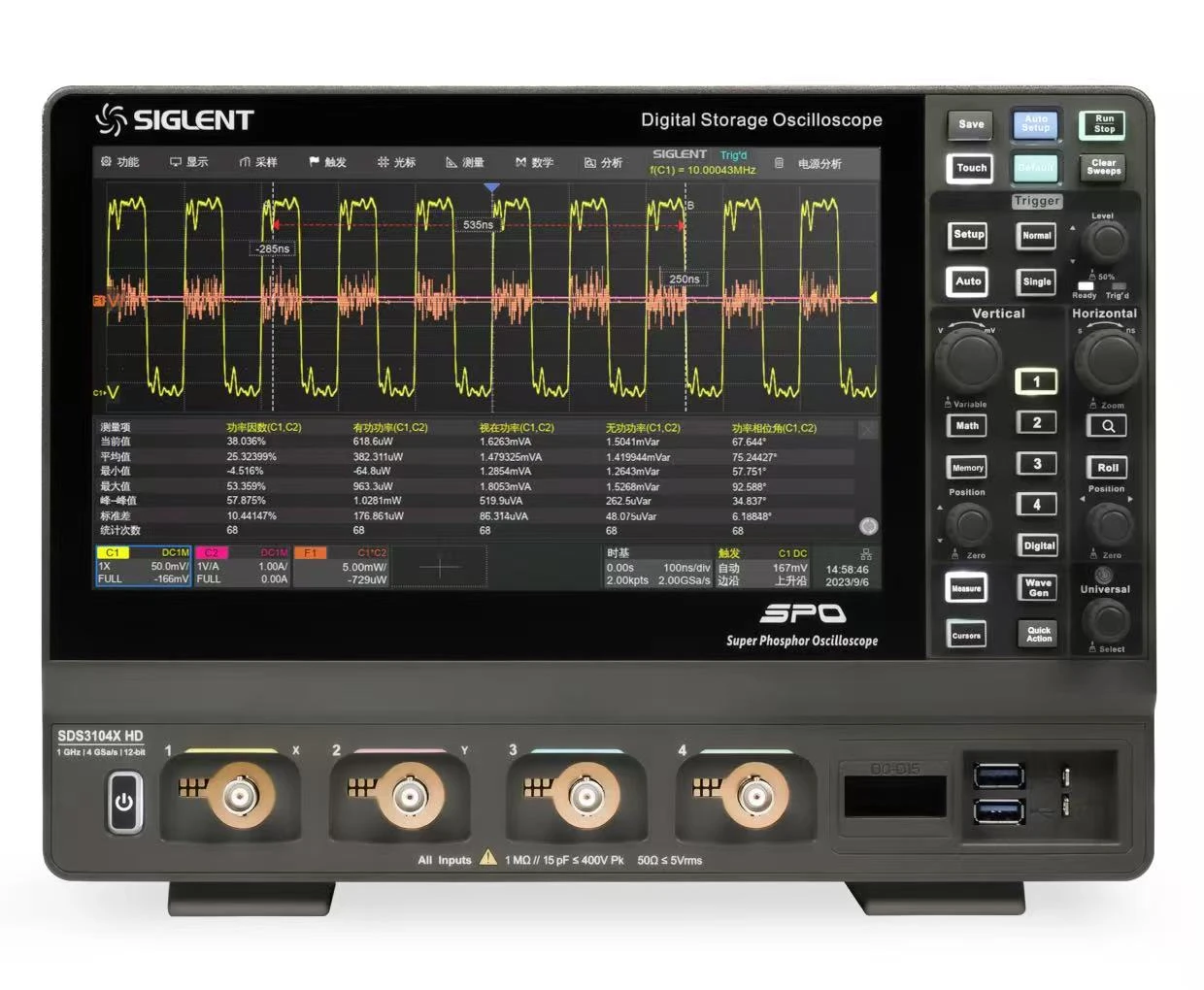

Model: SDS3000X HD Series
Model: SDS3000X HD Series
The SDS3000X HD Series oscilloscope is one of Dingyang Technology's flagship products, offering bandwidth options from 1 GHz to 350 MHz with 4-channel expansion capability. Its high 4 GSa/s sampling rate and 890,000 wfm/s waveform capture rate ensure real-time signal acquisition accuracy. The high-resolution display in HD mode enhances waveform clarity, making it ideal for diverse requirements in electronics R&D and education.
Products
The SDS3000X HD Series oscilloscope features a 12-bit ADC, delivering high-precision signal acquisition with clearly visible waveform details. Its outstanding ENOB (Effective Number of Bits) performance ensures measurement authenticity. It supports rich triggering functions, template testing, and power analysis, enabling efficient signal quality evaluation and rapid acquisition of power parameters. The built-in 50MHz function generator offers comprehensive functionality to meet diverse testing needs.
Product Parameters
Bandwidth: 1 GHz, 500 MHz, 350 MHz
Memory depth: Up to 400 Mpts/ch
Vertical resolution: 12-bit
Real-time sampling rate: Up to 4 GSa/s
Waveform capture rate: Up to 890,000 wfm/s
Low inherent noise: As low as 125 μVrms across all bandwidths
Product Specification Download
