Oscilloscope
Brand: Dingyang

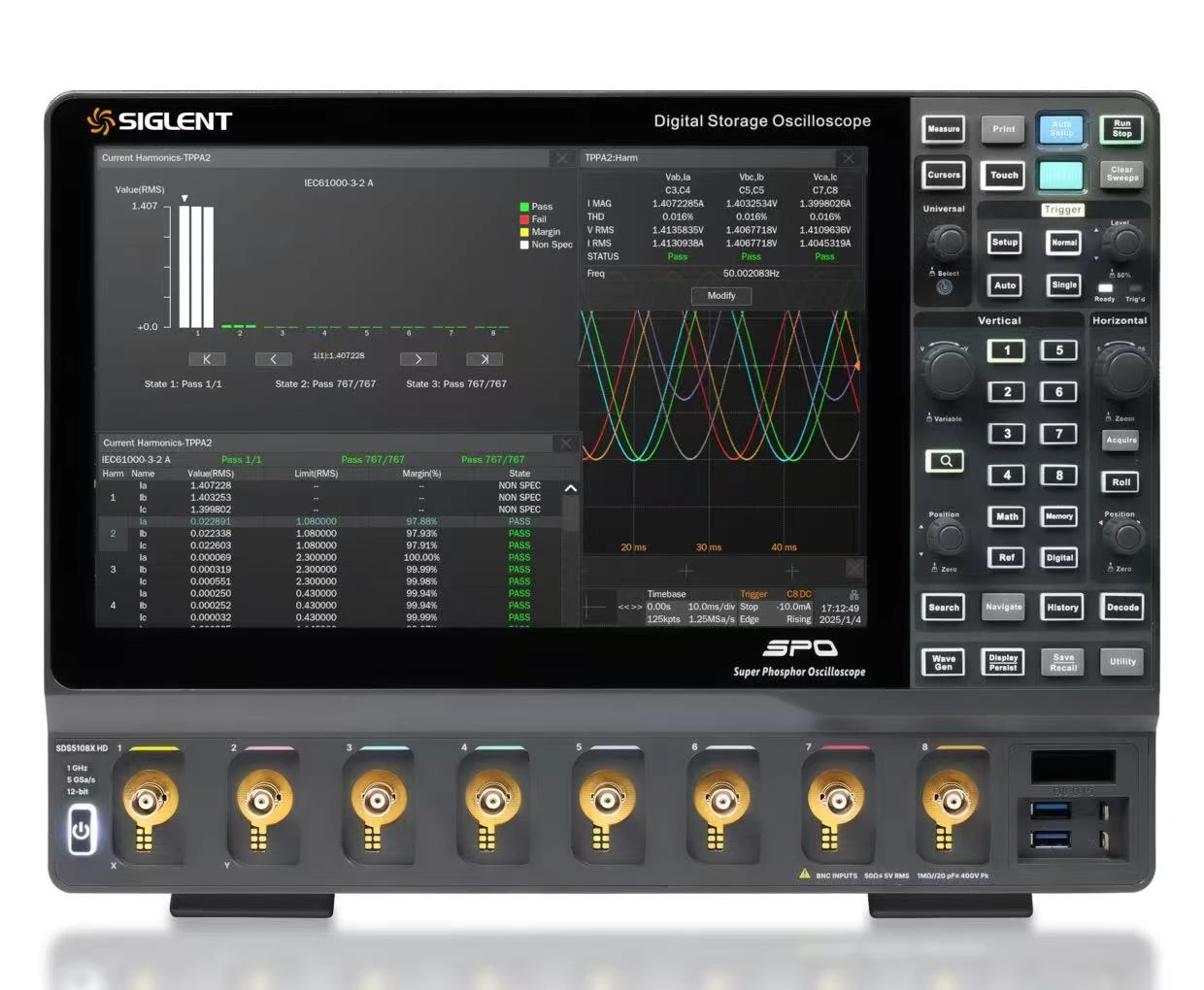

Model: SDS5000X HD Series
The SDS5000X HD Series represents another masterpiece from Dingyang Technology, featuring a maximum bandwidth of 1GHz, high sampling rate of 5 GSa/s, memory depth of 2.5 Gpts, and supporting three-phase power analysis along with dual-pulse parameter auto-testing functions. It provides updated options for diverse testing solutions.

Contact Us

telephone number
WhatsApp
inbox
Products
The SDS5000X HD Series high-definition oscilloscope provides a more precise testing experience. It supports multi-channel signal timing analysis, enabling one-time completion of power rail measurements and featuring professional three-phase power analysis capabilities. The series also offers comprehensive wide-band semiconductor testing solutions, facilitating efficient R&D and debugging.
Product Parameters
Bandwidth: 1GHz, 500MHz, 350MHz
Memory Depth: Up to 2.5Gpts/channel
Vertical Resolution: 12-bit
Real-time Sampling Rate: Up to 5 GSa/s

Waveform Capture Rate: Up to 650,000 frames/second

Model NumberAnalog bandwidthNumber of channelsVertical resolutionMaximum real-time sample rateMaximum memory depthMaximum waveform capture rate
SDS5034X HD350 MHz4 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5054X HD500 MHz4 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5104X HD1 GHz4 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5036X HD350 MHz6 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5056X HD500 MHz6 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5106X HD1 GHz6 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5038X HD350 MHz8 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5058X HD500 MHz8 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
SDS5108X HD1 GHz8 + EXT12-bit5 GSa/s2.5 Gpts/ch650,000 wfm/s
