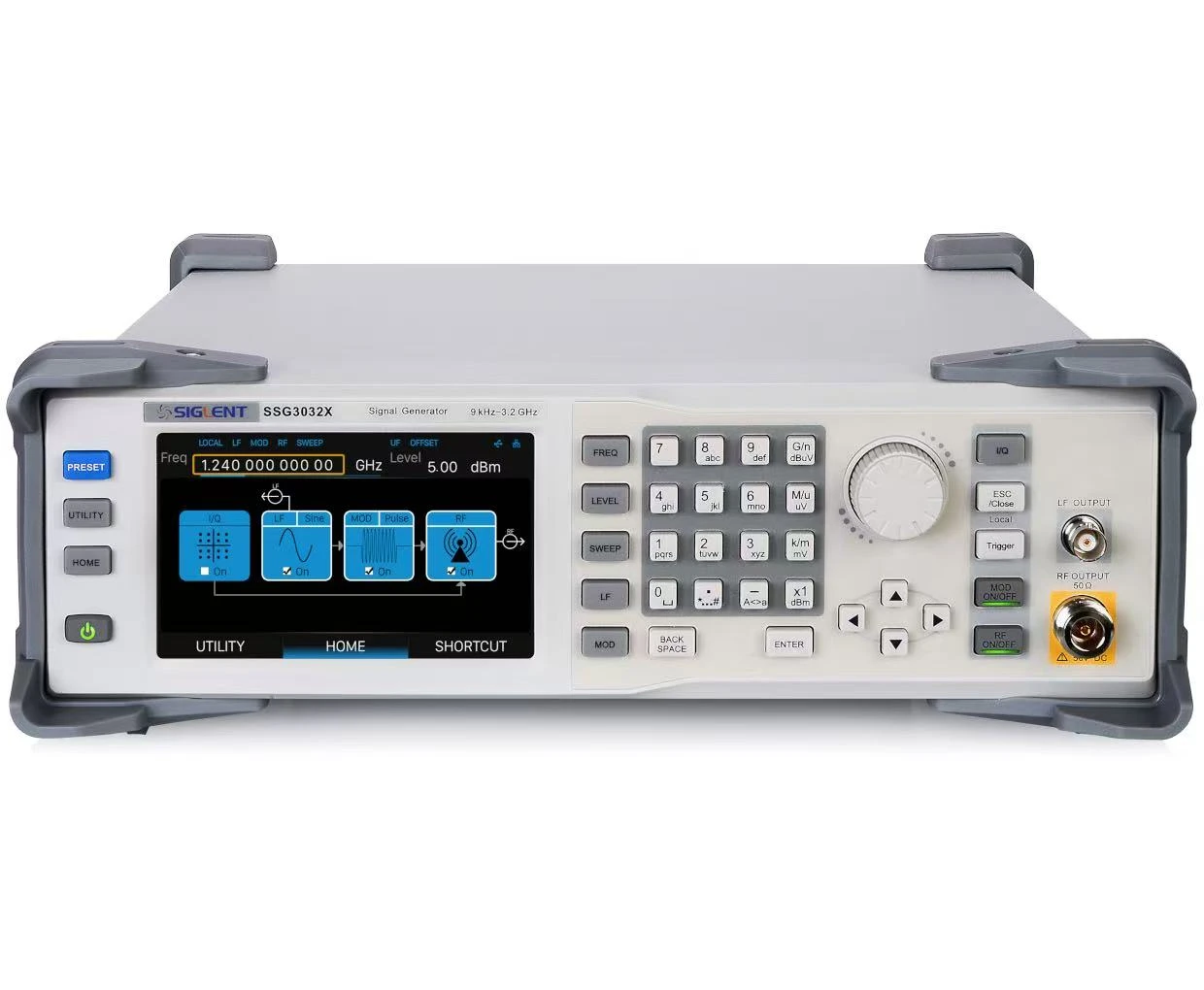

RF Signal Generator
Brand: Dingyang
Model: SSG3000X Series
The SSG3000X Series is Dingyang Technology's cost-effective RF signal generator, covering a frequency range from 9 kHz to 3.2 GHz, suitable for budget-conscious users seeking high performance. This series supports IQ modulation, delivers a maximum output power of +20 dBm, and exhibits excellent phase noise performance. The 5-inch capacitive touchscreen and abundant communication interfaces (USB-HOST, USB DEVICE, LAN, etc.) ensure flexible operation, making it an ideal choice for entry-level RF testing.

Contact Us

telephone number
WhatsApp
inbox
Products
The SSG3000X Series RF signal generator integrates AM/FM/PM analog modulation, pulse modulation, and pulse sequence generation, capable of producing various complex signals. It supports external SDG6000X for IQ modulation output, features a touchscreen interface, and enables remote control. Equipped with standard SCPI commands and host computer software, it achieves communication control via USB/LAN interfaces, meeting the needs of education, R&D, production testing, and other scenarios.
Product Parameters

  • Maximum frequency: 2.1 GHz/3.2 GHz

  • Level setting range: +20 dBm~-110 dBm
  • Supports AM/FM/PM analog modulation
  • Supports external IQ modulation, enabling IQ modulated signal output

  • 5-inch capacitive touchscreen


Model NumberFrequency rangeFrequency resolutionIQ modulationMaximum output powerPhase noiseDisplayCommunication interfacesI/Q bandwidth
SSG3032X-IQE9 kHz~3.2 GHz0.01 HzSupported+20 dBm<-110 dBc/Hz (1 GHz, offset 20 kHz, typical)5-inch capacitive touchscreen, 800(RGB)*480USB-Host, USB-Device, LAN100 MHz
SSG3032X9 kHz~3.2 GHz0.01 HzNot supported+20 dBm<-110 dBc/Hz (1 GHz, offset 20 kHz, typical)5-inch capacitive touchscreen, 800(RGB)*480USB-Host, USB-Device, LAN-
SSG3021X-IQE9 kHz~2.1GHz0.01 HzSupported+20 dBm<-110 dBc/Hz (1 GHz, offset 20 kHz, typical)5-inch capacitive touchscreen, 800(RGB)*480USB-Host, USB-Device, LAN100 MHz
SSG3021X9 kHz~2.1GHz0.01 HzNot supported+20 dBm<-110 dBc/Hz (1 GHz, offset 20 kHz, typical)5-inch capacitive touchscreen, 800(RGB)*480USB-Host, USB-Device, LAN-
