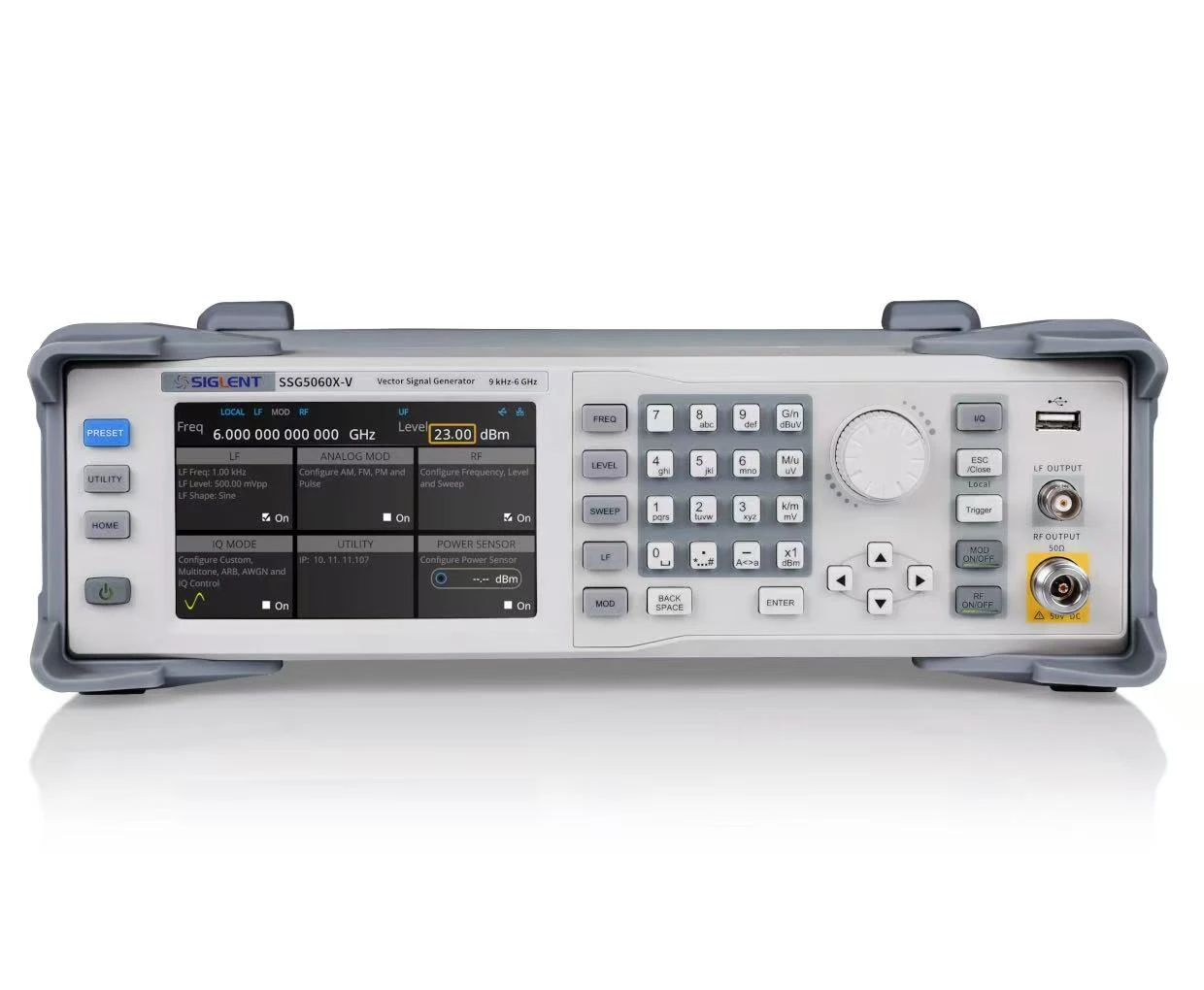

RF Simulation/Vector Signal Generator
Brand: Dingyang
Model: SSG5000X-V Series
Model: SSG5000X-V Series
The SSG5000X/X-V Series is Dingyang Technology's high-end model for digital modulation signal testing, covering 9 kHz to 6 GHz with IQ modulation support, capable of generating various digital modulation signals including 5G NR and WLAN. Its maximum output power reaches +26 dBm, with phase noise as low as -120 dBc/Hz, ensuring signal quality. Features a 5-inch capacitive touchscreen for intuitive operation and supports multiple communication interfaces to meet diverse testing needs.
Products
The SSG5000X-V Series integrates RF simulation/vector signal generation with multiple functions in one unit, significantly simplifying signal emulation workflows and greatly improving testing efficiency. Equipped with a powerful arbitrary waveform (ARB) mode, it supports CUSTOM mode for quickly generating customized waveforms that meet various testing standards. Built-in multi-tone mode enables precise output of multi-tone signals to meet complex testing scenarios. Integrated power control software automatically corrects cable loss to ensure power measurement accuracy, providing a complete solution for communication testing.
Product Parameters
Output frequency range 9 kHz ~ 4 GHz/6 GHz
- Level range -130 dBm ~ +20 dBm
- Phase noise<-120 dBc/Hz@1 GHz (typical), offset 20 kHz (typical)
- Internal baseband source bandwidth 150 MHz
Supports AM/FM/PM analog modulation and IQ modulation
