  • RF/Microwave Signal Generator

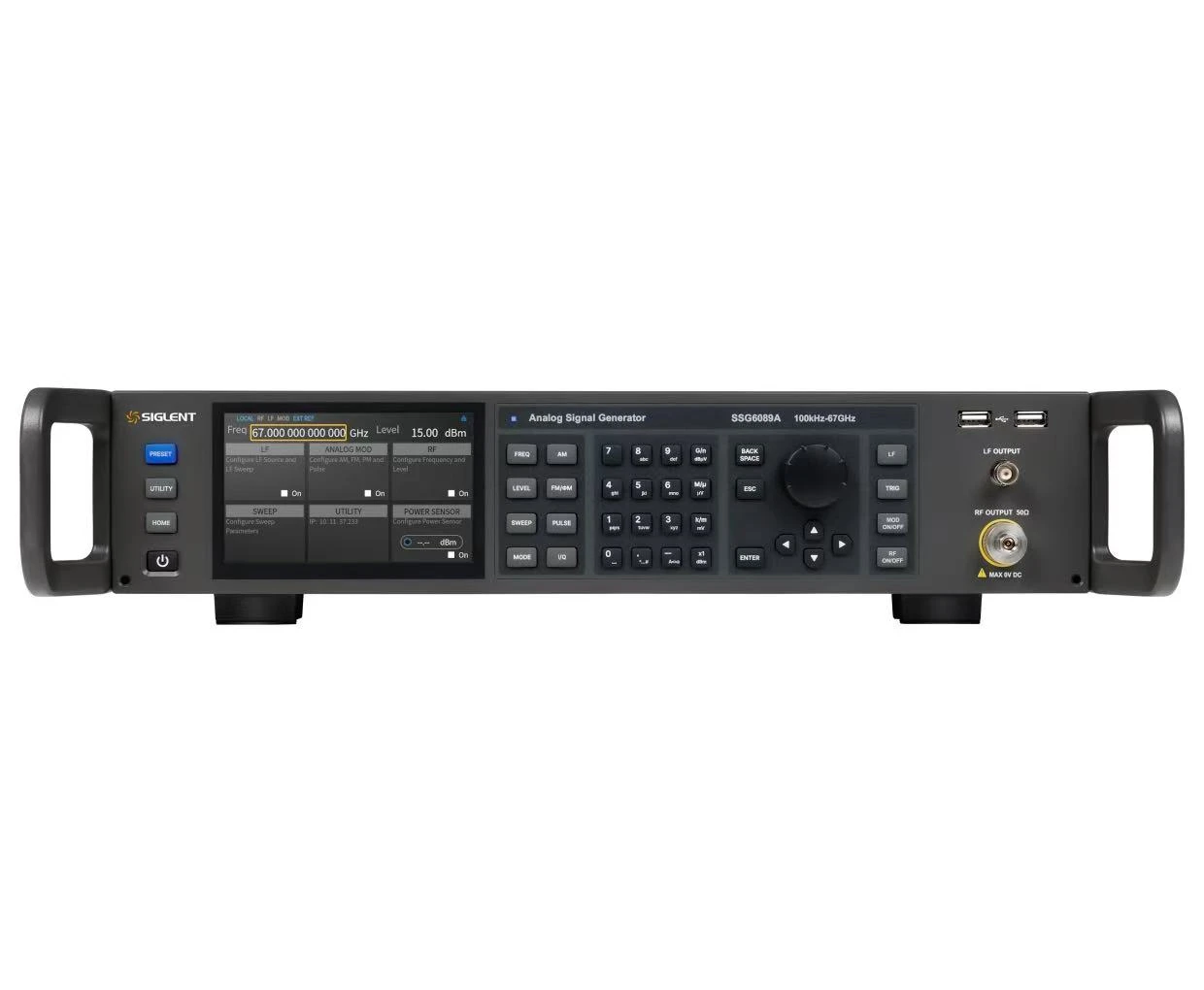

RF/Microwave Signal Generator
Brand: Dingyang
Model: SSG6000A Series
The SSG6000A Series is Dingyang Technology's high-end RF signal generator, covering a frequency range from 100 kHz to 67 GHz to meet extensive high-frequency testing needs. With a maximum output power of +22 dBm and phase noise <-146 dBc/Hz offset 10 kHz @1 GHz(Measured) (Option), it ensures high signal purity. The SSG6000A stands out with its exceptional frequency resolution (0.01 Hz) and rich communication interfaces (USB HOST, USB DEVICE, LAN, etc.), making it the preferred choice in professional RF testing fields.

Contact Us

telephone number
WhatsApp
inbox
Products
The SSG6000A Series RF/Microwave Signal Generator is a high-performance test instrument that meets stringent testing requirements with its superior signal quality and precise performance. This product series employs advanced frequency synthesis technology to deliver exceptionally pure spectral output, featuring excellent phase noise performance and spectral purity to ensure the accuracy and reliability of test signals. The device is equipped with a high-precision pulse generator and clock source module, capable of generating precisely controlled pulse signals and providing stable clock references to meet the rigorous timing precision demands of radar and communication systems. It also supports multiple modulation modes to simulate complex signal scenarios.
Product Parameters

  • Maximum Output Frequency 13.6 GHz/20 GHz/40 GHz/67 GHz

  • Level Setting Range -130 dBm ~ +24 dBm
  • Output Frequency Resolution Up to 0.001 Hz
  • Amplitude Accuracy ≤0.7 dB (Typical)
  • Supports AM/FM/PM/Pulse Modulation, Internal/External Modulation Modes
  • Phase Noise <-146 dBc/Hz offset 10 kHz @1 GHz(Measured) (Option)

  • Supports Pulse Modulation Function (Option), Pulse Sequence Generator, User-Defined Pulse Sequences (Option)


Model NumberFrequency RangeFrequency ResolutionIQ ModulationMaximum Output PowerPhase NoiseCommunication Interface
SSG6089ACW MODE 100 kHz~67 GHz0.001 HzNot Supported+16 dBm<-146 dBc/Hz@1 GHz, offset=10 kHz (Measured Value) (Optional)USB-HOST, USB DEVICE (USB-TMC), LAN (VXI-11, Socket, Telnet), Optional GPIB
SSG6087ACW MODE 100 kHz~40 GHz0.001 HzNot Supported+16 dBm<-146 dBc/Hz@1 GHz, offset=10 kHz (Measured Value) (Optional)USB-HOST, USB DEVICE (USB-TMC), LAN (VXI-11, Socket, Telnet), Optional GPIB
SSG6085ACW MODE 100 kHz~20 GHz0.001 HzNot Supported+22 dBm<-146 dBc/Hz@1 GHz, offset=10 kHz (Measured Value) (Optional)USB-HOST, USB DEVICE (USB-TMC), LAN (VXI-11, Socket, Telnet), Optional GPIB
SSG6083ACW MODE 100 kHz~13.6 GHz0.001 HzNot Supported+22 dBm<-146 dBc/Hz@1 GHz, offset=10 kHz (Measured Value) (Optional)USB-HOST, USB DEVICE (USB-TMC), LAN (VXI-11, Socket, Telnet), Optional GPIB
