Function/Arbitrary Waveform Generator
Brand: Dingyang

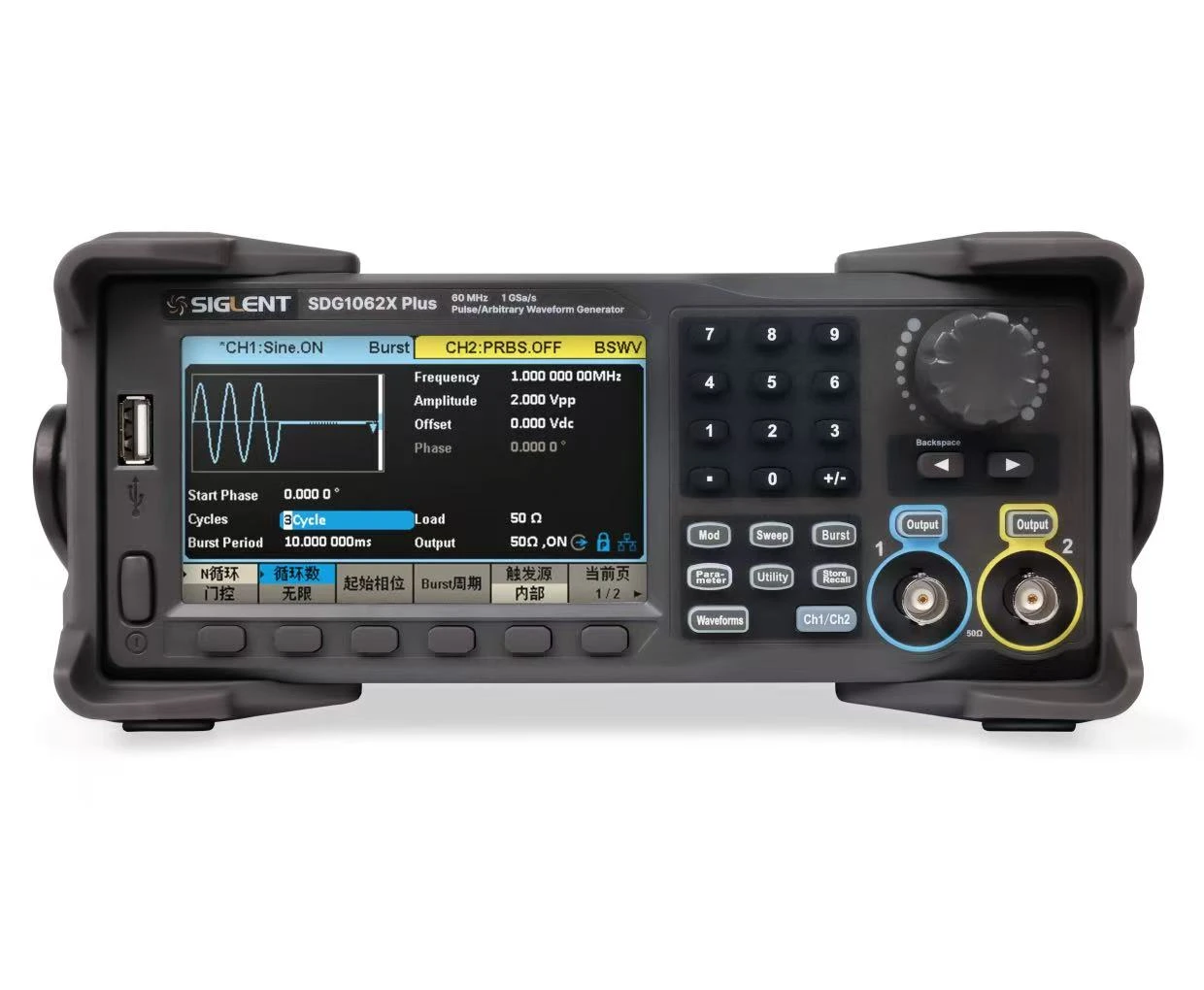

Model: SDG1000X Plus Series
Model: SDG1000X Plus Series
The SDG1000X Plus Series is a high-performance waveform generator launched by Dingyang Technology, featuring EasyPulse technology that ensures high stability and low jitter in output waveforms. Its powerful waveform editing capabilities can meet the requirements of various application scenarios.
Products
The SDG1000X Plus Series waveform generator integrates a high-speed sampling system, capable of precisely capturing and generating various signal waveforms. It features an 8Mpts large-capacity arbitrary waveform memory to perfectly reproduce complex signal details. This series supports PRBS code output, effectively meeting the bit error rate testing requirements of high-speed digital systems. It also integrates dual-pulse generator functionality for easy dynamic characteristic testing of power components. The device supports remote control, significantly improving testing efficiency and operational convenience, making it an ideal tool for R&D and testing applications.
Product Parameters
- Dual-channel, maximum output frequency 60 MHz, maximum output amplitude 20 Vpp
- 1 GSa/s digital-to-analog converter sampling rate, 16-bit vertical resolution
- Supports sequence waveform playback function, maximum storage depth of 8 Mpts per channel
- Maximum output of 40 Mbps PRBS code type
- Supports dual-pulse output function
4.3-inch display screen
