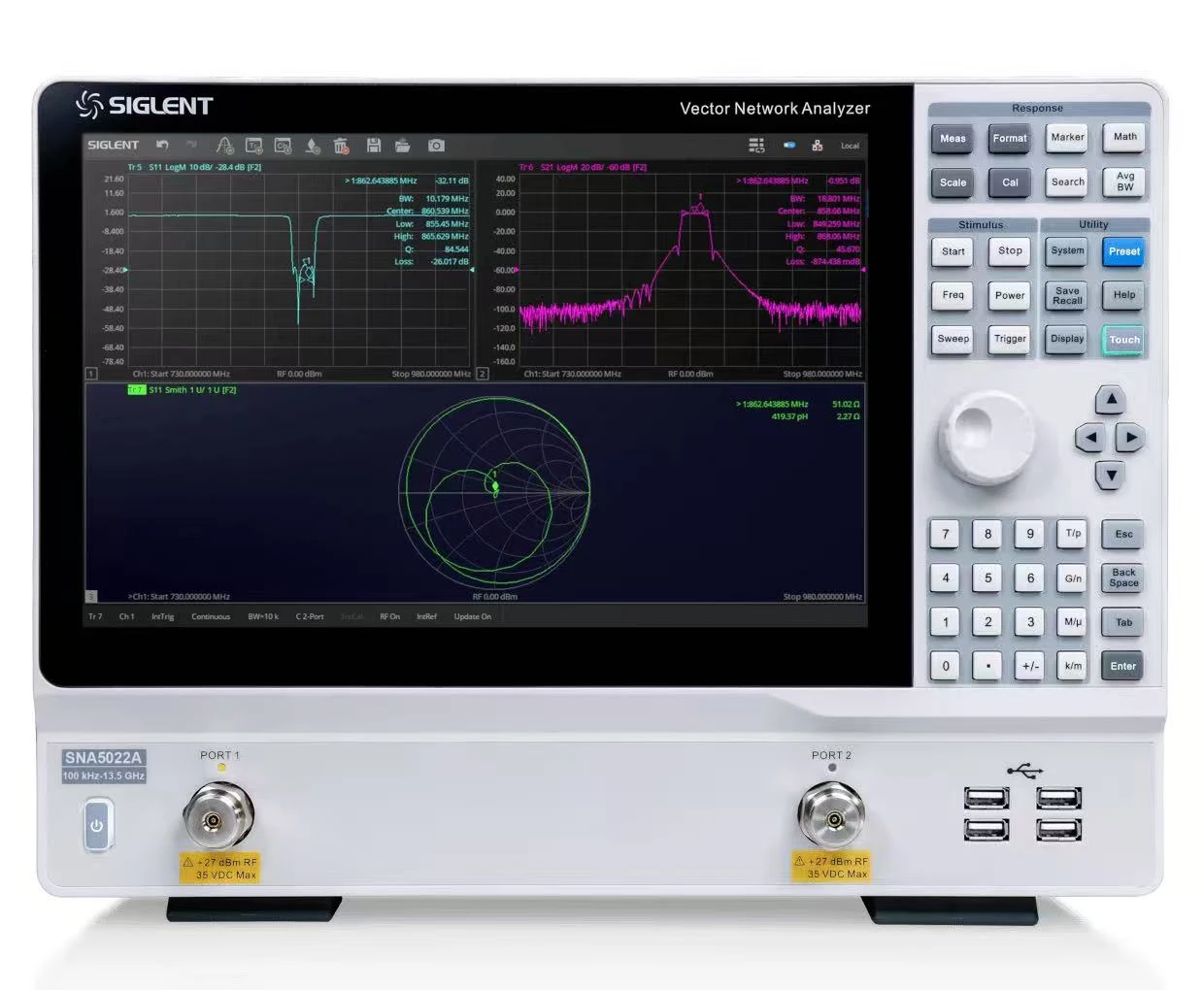

Vector Network Analyzer
Brand: Dingyang
Model: SNA5000A Series
Model: SNA5000A Series
As a high-performance vector network analyzer, the SNA5000A Series balances cost and capability. It enables one-click analysis for high-frequency measurements and filter characteristics, quickly obtaining key indicators like insertion loss and bandwidth. Its flexible port configurations and scanning modes adapt to various testing requirements. Widely used in antenna design and RF cable testing scenarios, it empowers engineers to efficiently complete R&D tasks.
Products
The SNA5000A Series Vector Network Analyzer features a modern streamlined exterior with humanized interactive design, combining professional quality with operational convenience. This series supports high-precision time-domain analysis and eye diagram functionality, enabling comprehensive validation of high-speed digital signals. It precisely characterizes material dielectric properties, making it ideal for new material R&D and dielectric property analysis. The system also supports gain compression testing to accurately evaluate nonlinear characteristics of amplifiers and other components, while being compatible with scalar/vector mixer measurement solutions. With multi-port expansion options, the system efficiently handles multi-port device testing, meeting diverse measurement needs for microwave components, antenna systems, and communication modules.
Product Parameters
Frequency Range: 100 kHz - 26.5 GHz
IF Bandwidth Range: 1 Hz ~ 10 MHz
- Output Power Setting Range: -55 dBm ~ +10 dBm
- Optional time-domain analysis and spectrum analyzer modules available
- Calibration Types: Response calibration, enhanced response calibration, 1-port calibration, full 2-port calibration, TRL calibration
Measurement Analysis Types: S-parameter measurement, differential (balanced) measurement, receiver measurement, time-domain analysis, limit testing, noise figure testing, bandwidth analysis, impedance conversion, port matching, de-embedding functionality
