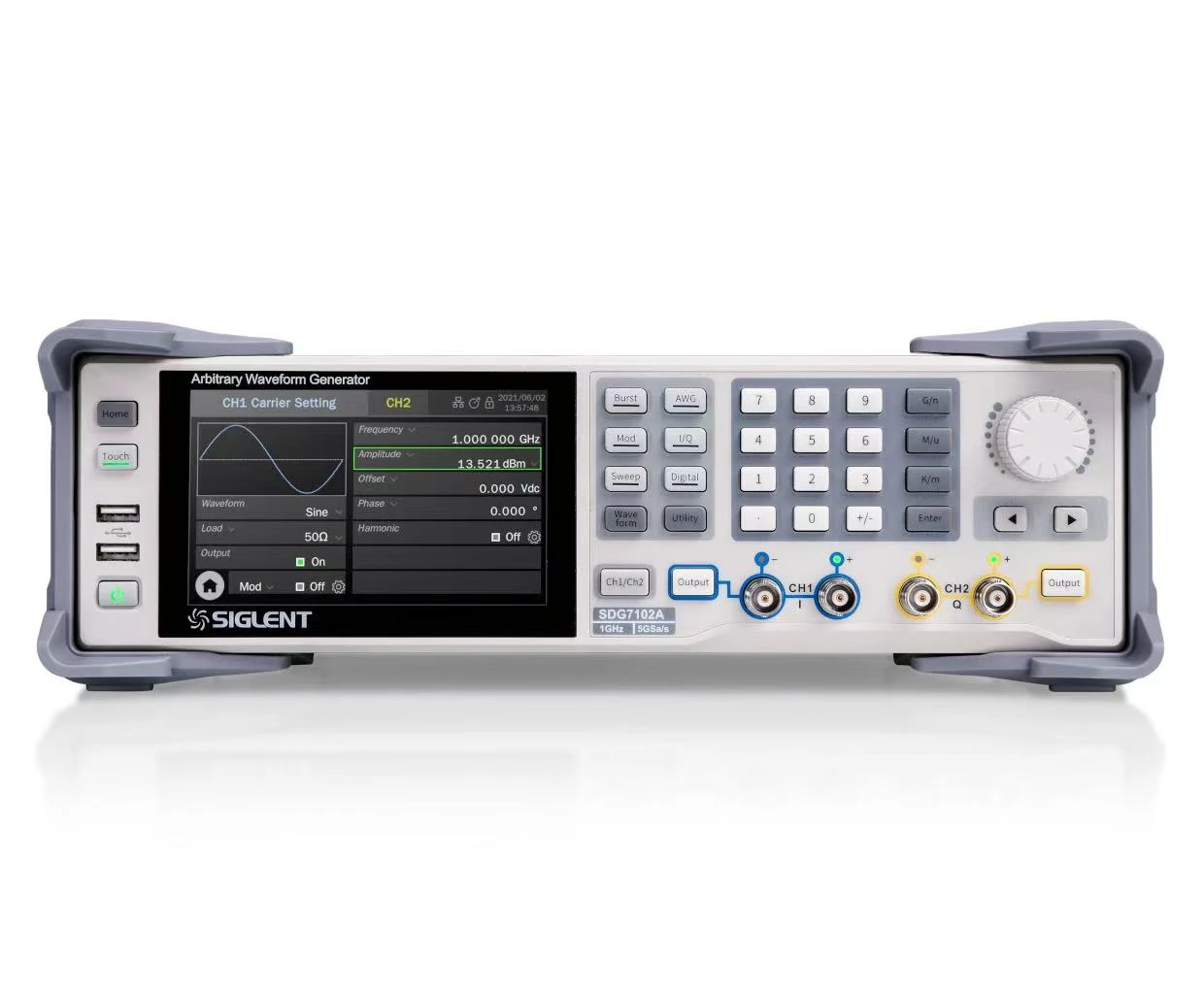

Arbitrary waveform generator
Brand: Dingyang
Model: SDG7000A Series
Model: SDG7000A Series
As a high-performance signal source, the SDG7000A Series not only inherits all the advantages of the SDG6000X Series but also optimizes user interfaces and expandability. It supports multi-channel synchronized output to meet synchronous testing requirements in various scenarios. Its exceptional performance and flexible configuration make it the preferred tool in research and production fields.
Products
The SDG7000A Series specializes in signal generation, featuring powerful arbitrary waveform and vector signal output capabilities. It efficiently produces complex signals, simplifies simulation workflows, and significantly accelerates testing processes.
Product Parameters
- Maximum output frequency: 1 GHz
5 GSa/s digital-to-analog converter sampling rate, 14-bit vertical resolution
Dual-channel differential/single-ended analog output, 16-bit LVDS/LVTTL digital bus output
Capable of outputting vector signals with a maximum symbol rate of 500 MSymbol/s
24Vpp analog output capability with ±12 V DC offset, providing a maximum output range of ±24 V (48 V)
