Arbitrary waveform generator
Brand: Dingyang
Model: SDG8000A Series
Model: SDG8000A Series

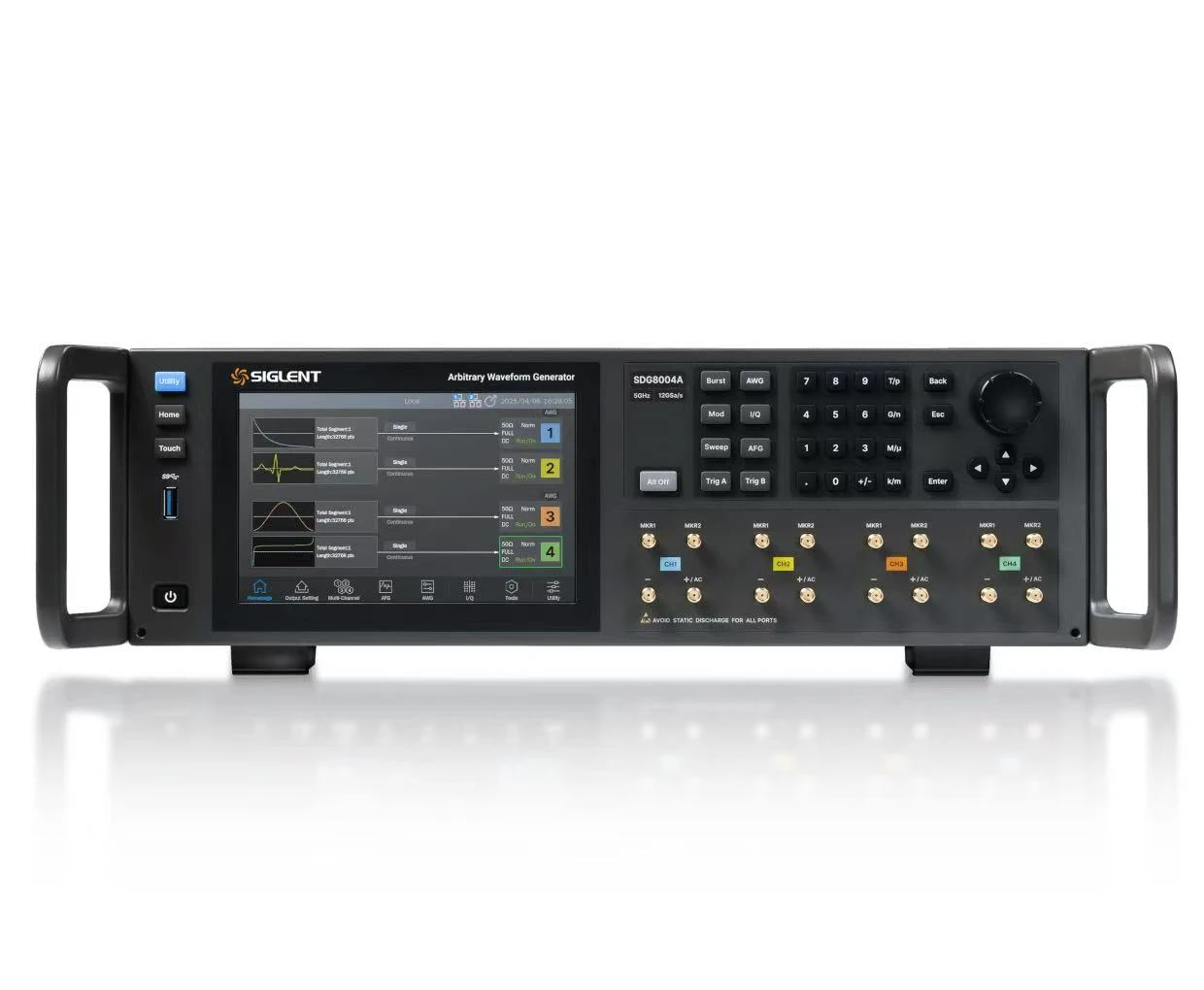

The SDG8000A Series function / arbitrary waveform generator features up to 4 analog output channels with 16-bit vertical resolution, a maximum sampling rate of 12 GSa/s (interpolated), and an output frequency of up to 5 GHz, with a maximum modulation bandwidth of 2 GHz. Each channel offers up to 4G sample point storage space, eliminating the need to sacrifice signal bandwidth and providing longer playback time. When paired with SigIQPro, it can also output communication signals such as Bluetooth, WIFI, and LTE waveforms. Additionally, the SDG8000A provides high-speed serial code signal output, supports complex multi-level sequence wave output, dual pulses, multi-tones, and linear frequency modulation functions, meeting the extensive testing needs of communication, industrial, and scientific research fields.
Products
The SDG8000A series features high frequency and high precision characteristics, accurately restoring signal details. It supports powerful arbitrary waveform generation and flexibly adapts to various complex testing scenarios. Equipped with modulation and vector signal generation capabilities, it meets the needs of a wide range of industries and can generate noise and various special signals, providing robust support for professional testing.
Product Parameters
2/4 channels, maximum output frequency of 4 GHz (10 GSa/s sampling rate) / 5 GHz (12 GSa/s sampling rate)
16-bit vertical resolution
Capable of outputting vector signals with a maximum bandwidth of 2 GHz
Supports Bluetooth, OFDM, IOT, LTE, and WIFI signal waveform output
196 built-in arbitrary waveforms
