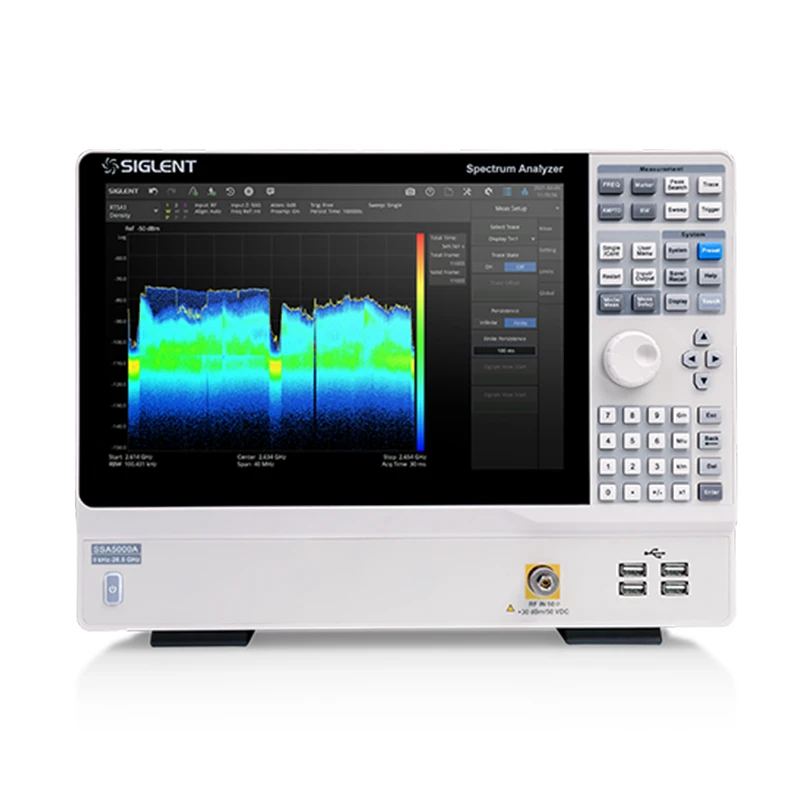

Model: SSA5000A Series
The SSA5085A is a high-end spectrum analyzer with a frequency range of 9 kHz–26.5 GHz and a resolution bandwidth of 1 Hz, offering exceptional sensitivity for detecting weak signals. It supports one-click Bluetooth BR/EDR/LE testing and protocol recognition, integrating noise figure, phase noise, pulse, modulation analysis, and real-time spectrum functions. Combined with EasyVSA software, it enables multi-dimensional observation and analysis of transient signals, widely applicable in R&D, production, and education scenarios.
The SSA5000A is a high-end spectrum analyzer from Dingyang Technology, featuring a frequency range from 9 kHz to 26.5 GHz, meeting the demands of high-precision and wide-bandwidth applications. Utilizing advanced digital intermediate frequency technology, it offers a resolution bandwidth as low as 1 Hz and excels in detecting minute signals, making it an ideal choice for R&D, education, and production environments.
Frequency range: 9 kHz – 26.5 GHz
- Real-time analysis bandwidth: 40 MHz (Real-Time Analysis)
- Display average noise level (DANL) below -165 dBm/Hz
- Phase noise below -105 dBc/Hz@1 GHz, offset 10 kHz (typical)
- Minimum resolution bandwidth (RBW): 1 Hz
Signal modulation analysis supports AM/FM, ASK/FSK/MSK/PSK/QAM, etc.
