Spectrum/Signal Analyzer
Brand: Dingyang

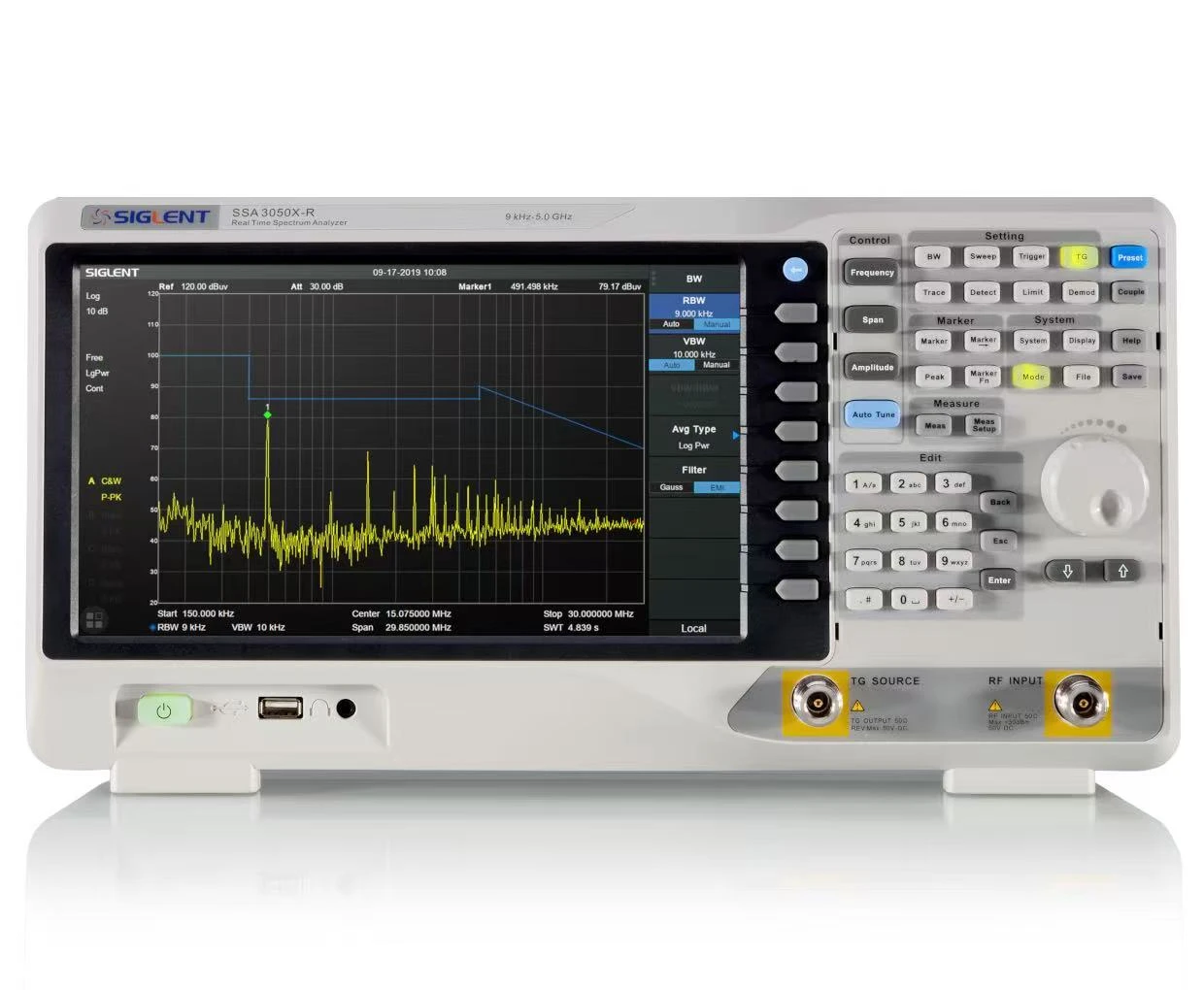

Model: SSA3000X-R Series
Model: SSA3000X-R Series
The SSA3000X-R Series is specifically designed for real-time spectrum analysis, covering a frequency range from 9 kHz to 7.5 GHz with a maximum real-time analysis bandwidth of up to 40 MHz (optional), meeting diverse application requirements. Its unique seamless spectrum measurement and triggering capabilities enable precise capture of weak signals masked by strong interference, making it particularly suitable for signal debugging and analysis in complex electromagnetic environments. Rich functional options such as advanced measurement suites and EMI measurement kits further enhance testing efficiency and accuracy.
Products
The SSA3000X-R Series Spectrum/Signal Analyzer is a high-performance real-time spectrum analysis device that integrates real-time spectrum analysis, vector network analysis, and high-speed signal processing capabilities into a single unit. This product line features excellent real-time signal acquisition, analysis, and display capabilities, enabling precise capture and interpretation of complex RF signals while delivering stable and efficient testing performance. The device supports a comprehensive range of measurement functions and is widely applicable in communication R&D, field testing, education, system maintenance, and various other scenarios, providing users with comprehensive and reliable testing solutions.
Product Parameters
Frequency range from 9 kHz to 7.5 GHz
Maximum real-time analysis bandwidth of 40 MHz
100% POI with shortest signal duration of 7.2 μs
Spectrum acquisition rate of 50,000 frames
Display average noise level (DANL) of -165 dBm/Hz (typical)
Phase noise < -98 dBc/Hz (1 GHz, offset 10 kHz, typical)
Standard vector network analysis (VNA) and DTF functions
