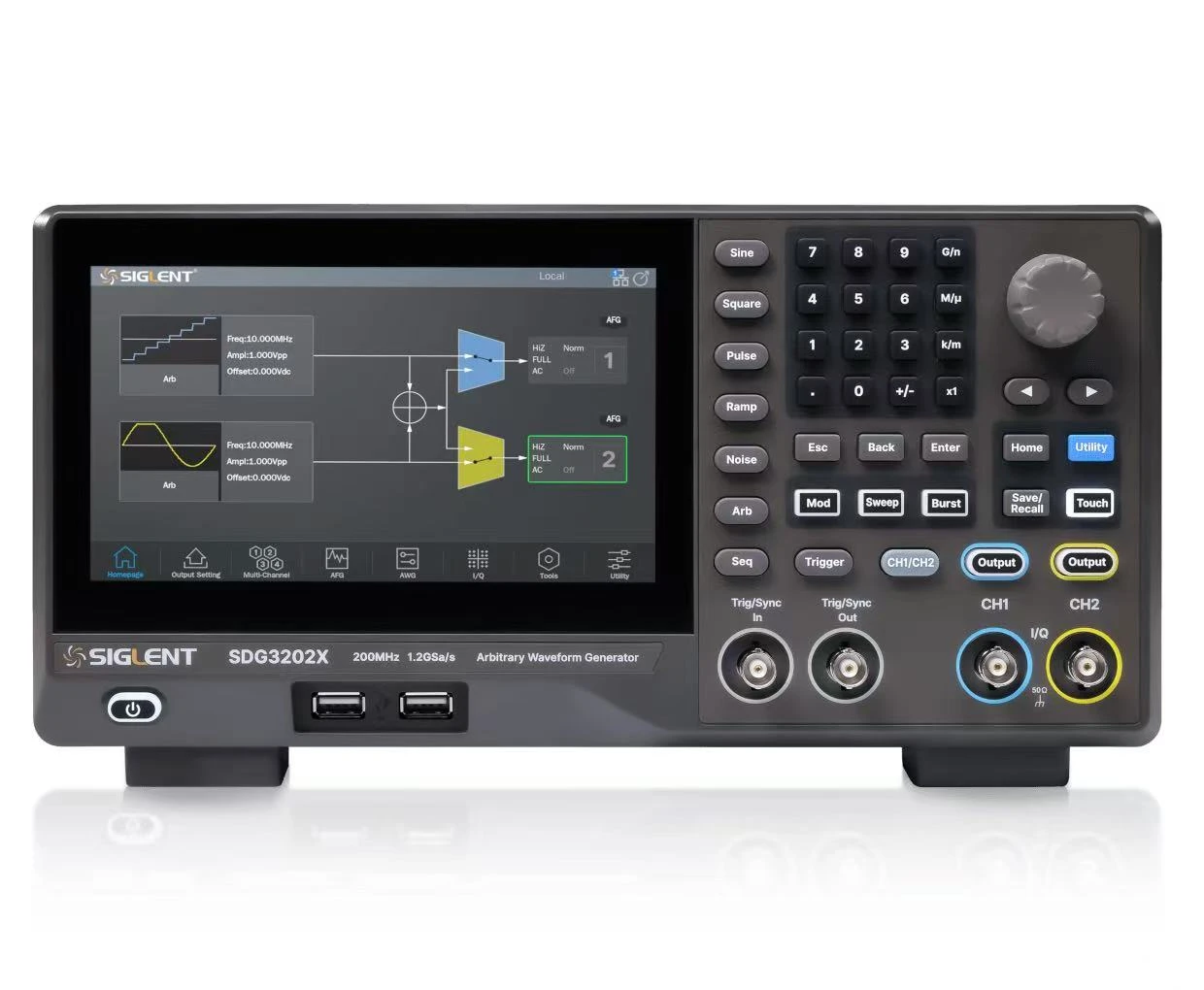

Function/Arbitrary Waveform Generator
Brand: Dingyang
Model: SDG3000X Series
Model: SDG3000X Series
The SDG3000X Series boasts 16-bit vertical resolution, up to 200MHz output frequency, 1.2GSa/s sampling rate, and maximum 40Mpts memory depth per channel. It incorporates innovative EasyPulse and TrueArb technologies to significantly reduce waveform jitter. Equipped with a 7-inch capacitive touchscreen, the SDG3000X supports intuitive operation settings and features sequence wave generation, noise generation, harmonic generation, IQ signal generation, PRBS pattern generation, and various complex signal synthesis capabilities. It supports multi-pulse output and facilitates power device dual-pulse testing. As a versatile waveform generation device, the SDG3000X is widely used in communications, semiconductors, new energy, and scientific research/education, providing more options for diverse testing solutions.
Products
The SDG3000X Series Signal Generator excels in high-fidelity signal generation with precise waveform reproduction, supporting high-precision pulse output and flexible edge adjustment. This series features 40Mpts arbitrary waveform length per channel, perfectly reproducing complex signals to cover diverse testing needs. With a unique dual-pulse testing solution, it effectively assists semiconductor testing. The intelligent interactive design significantly enhances operational efficiency and workflow convenience.
Product Parameters
Dual-channel, maximum output frequency 200MHz, full-band 1μHz resolution
- 1.2 GSa/s digital-to-analog converter sampling rate, 16-bit vertical resolution
- Point-by-point arbitrary waveform output, 40Mpts waveform memory
- Maximum 120Mbps PRBS pattern output
- Supports dual-pulse output function
- Can serve as noise generator/harmonic generator/IQ signal generator
7-inch 1024×600 high-resolution touch display
